HV1825Y822MXHATHV

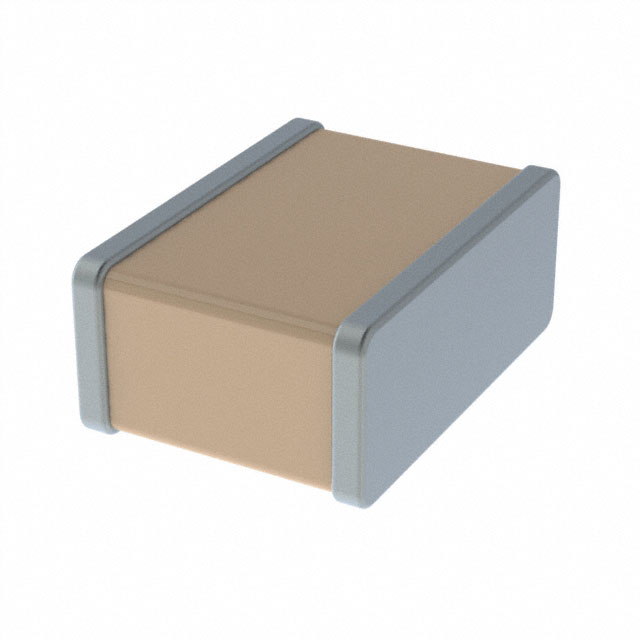

lmages are for reference only.HV1825Y822MXHATHV
CAP CER 8200PF 3KV X7R 1825
Datasheet1825 (4564 Metric)
71,345 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8200 pF ±20% 3000V (3kV) Ceramic Capacitor X7R 1825 (4564 Metric)
HV1825Y822MXHATHV
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | HV |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 8200 pF |
| Tolerance | ±20% |
| Voltage - Rated | 3000V (3kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1825 (4564 Metric) |
| Size / Dimension | 0.177" L x 0.252" W (4.50mm x 6.40mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.106" (2.70mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HV1825Y822MXHARHV | HV1825Y102JXMARHV | HV1825Y102JXMATHV | HV1825Y102JXVARHV |
| Manufacturer | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 8200PF 3KV X7R 1825 | CAP CER 1000PF 5KV X7R 1825 | CAP CER 1000PF 5KV X7R 1825 | CAP CER 1000PF 4KV X7R 1825 |
| Series | Vishay Vitramon | Vishay Vitramon | ||
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
