HV2220Y122MXHATHV

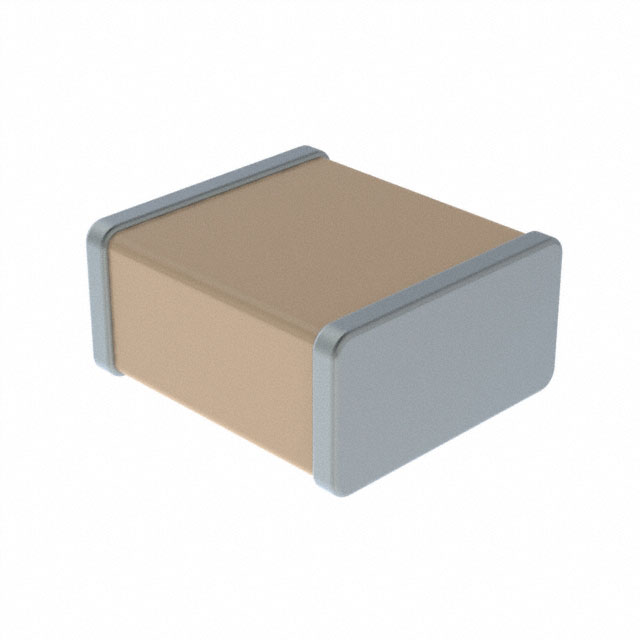

lmages are for reference only.HV2220Y122MXHATHV
CAP CER 1200PF 3KV X7R 2220
Datasheet2220 (5750 Metric)
88,594 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1200 pF ±20% 3000V (3kV) Ceramic Capacitor X7R 2220 (5750 Metric)
HV2220Y122MXHATHV
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | HV |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1200 pF |
| Tolerance | ±20% |
| Voltage - Rated | 3000V (3kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2220 (5750 Metric) |
| Size / Dimension | 0.220" L x 0.200" W (5.59mm x 5.08mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.106" (2.70mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HV2220Y122MXMATHV | HV2220Y122MXVATHV | HV2220Y102JXMATHV | HV2220Y102JXVATHV |
| Manufacturer | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 1200PF 5KV X7R 2220 | CAP CER 1200PF 4KV X7R 2220 | CAP CER 1000PF 5KV X7R 2220 | CAP CER 1000PF 4KV X7R 2220 |
| Series | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
