HVD5-B20M-050-05
lmages are for reference only.HVD5-B20M-050-05
RES NETWORK 2 RES MULT OHM 15SIP
Datasheet15-SIP, 6 Leads
50,208 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
200k, 19.8M Ohm ±0.1% 31mW Power Per Element Voltage Divider 2 Resistor Network/Array ±30ppm/°C 15-SIP, 6 Leads
HVD5-B20M-050-05
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | Caddock Electronics Inc. |
| Series | HVD |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 200k, 19.8M |
| Tolerance | ±0.1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±5ppm/°C |
| Number of Pins | 6 |
| Power Per Element | 31mW |
| Temperature Coefficient | ±30ppm/°C |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Through Hole |
| Package / Case | 15-SIP, 6 Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.500" L x 0.110" W (38.10mm x 2.79mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

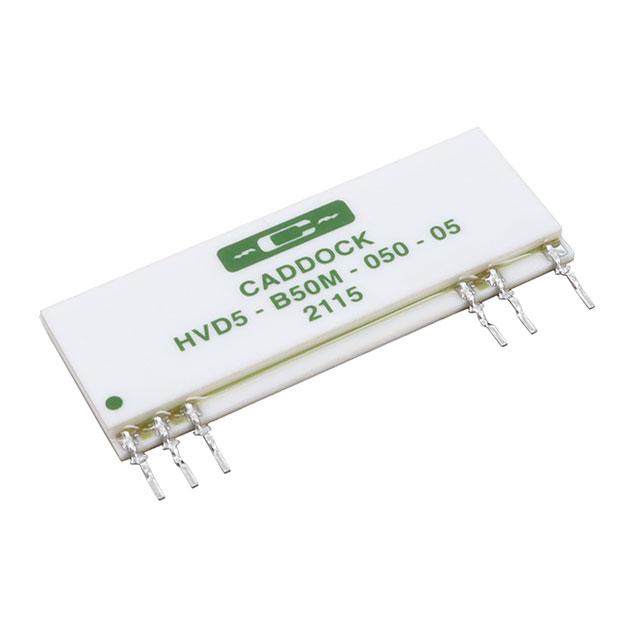

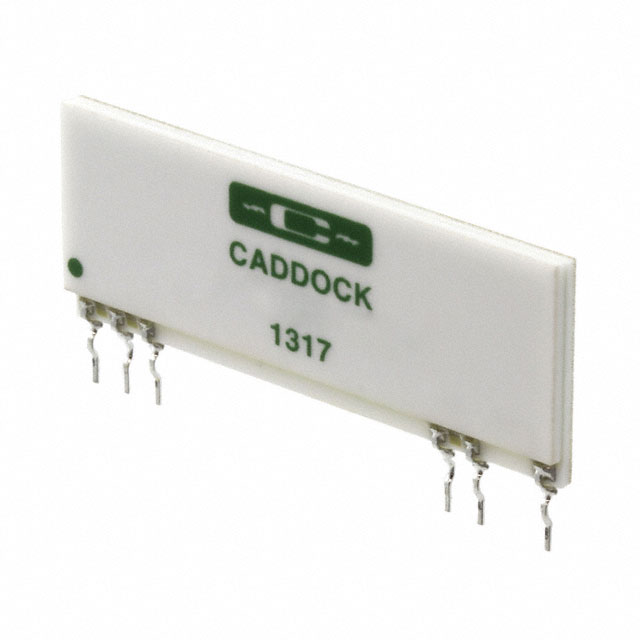

| Part Number | HVD5-B10M-050-05 | HVD5-B50M-050-05 | HTRN20-1T5 | HTRN5-1T5 |
| Manufacturer | Caddock Electronics Inc. | Caddock Electronics Inc. | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES NETWORK 2 RES MULT OHM 15SIP | VOLTAGE DIVIDER | RES ARRAY 4 RES MULT OHM 8SOIC | RES ARRAY 4 RES MULT OHM 8SOIC |
| Series | HVD | HVD | HTRN | HTRN |
| Packaging | Bulk | Bag | Tape & Reel (TR) | Tape & Reel (TR) |
