HVR3700001214FR500
lmages are for reference only.HVR3700001214FR500
RES 1.21M OHM 1/2W 1% AXIAL
DatasheetAxial
52,948 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.21 MOhms ±1% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety Metal Film
HVR3700001214FR500
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | HVR37 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1.21 MOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Metal Film |
| Features | Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Size / Dimension | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

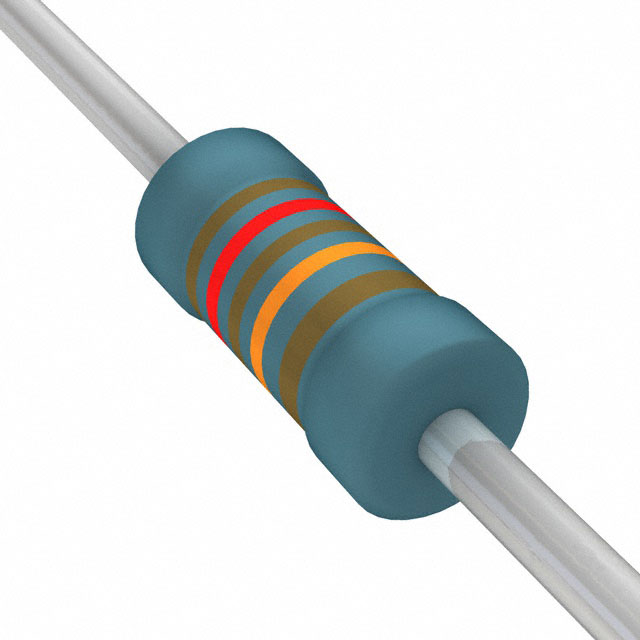

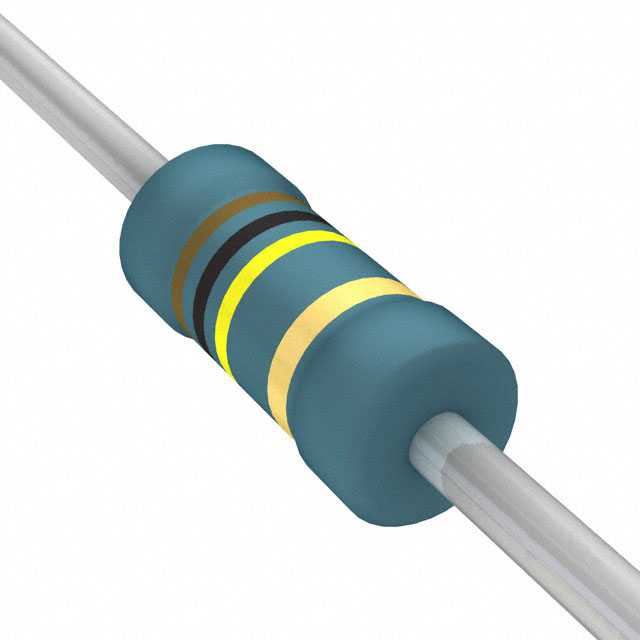

| Part Number | HVR3700001213FR500 | HVR3700001003FR500 | HVR3700001003JR500 | HVR3700001004FR500 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 121K OHM 1/2W 1% AXIAL | RES 100K OHM 1/2W 1% AXIAL | RES 100K OHM 1/2W 5% AXIAL | RES 1M OHM 1/2W 1% AXIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
