HWZT-20.00MD

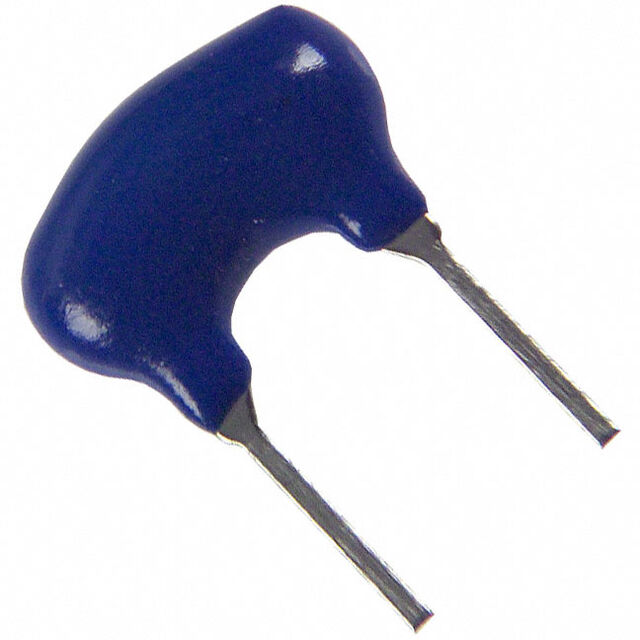

lmages are for reference only.HWZT-20.00MD
CERAMIC RES 20.0000MHZ T/H
DatasheetRadial - 2 Lead, 5.00mm Pitch
63,880 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 MHz Ceramic Resonator ±0.3% 40 Ohms -40°C ~ 85°C Through Hole
HWZT-20.00MD
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | Abracon LLC |
| Series | HWZT |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Ceramic |
| Frequency | 20 MHz |
| Frequency Stability | ±0.3% |
| Frequency Tolerance | ±0.5% |
| Features | - |
| Capacitance | - |
| Impedance | 40 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 2 Lead, 5.00mm Pitch |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) |
| Height | 0.394" (10.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

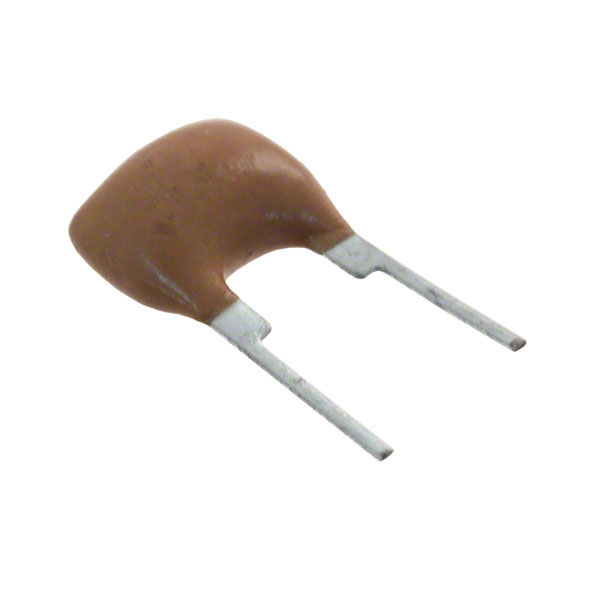

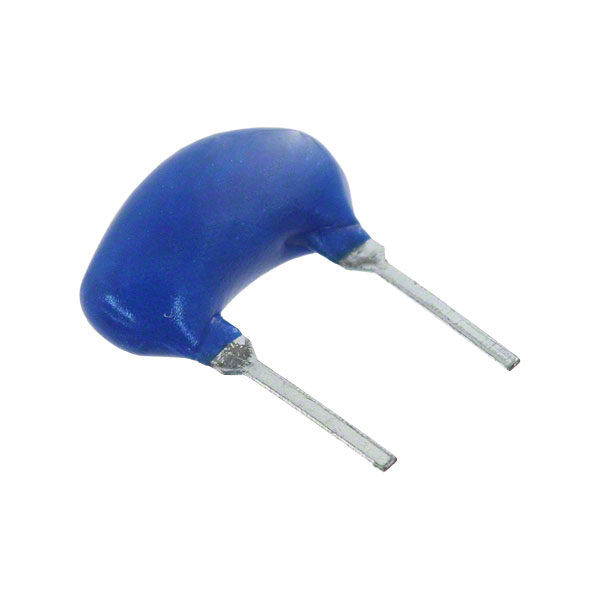

| Part Number | HWZT-2.00MD | HWZT-12.00RS | HWZT-12.00MD | HWZT-10.00MD |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CERAMIC RES 2.0000MHZ T/H | CERAMIC RES 12.0000MHZ T/H | CERAMIC RES 12.0000MHZ T/H | CERAMIC RES 10.0000MHZ T/H |
| Series | HWZT | HWZT-RS | HWZT | HWZT |
| Packaging | Bulk | Bulk | Bulk | Bulk |
