Product CatalogPart Number
HY 12-P
Manufacturer
LEM USA Inc.Description
SENSOR CURRENT HALL 12.5A AC/DC
Datasheet
DatasheetPackage
Module
In Stock
91,891 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HY 12-P
HY 12-P
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 12.5A 1 Channel Hall Effect, Open Loop Bidirectional Module
Quick Inquiry
HY 12-P
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | HY |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 12.5A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | - |
| Frequency | DC ~ 50kHz |
| Linearity | ±1% |
| Accuracy | ±1% |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 3µs |
| Current - Supply (Max) | 10mA |
| Operating Temperature | -10°C ~ 80°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|

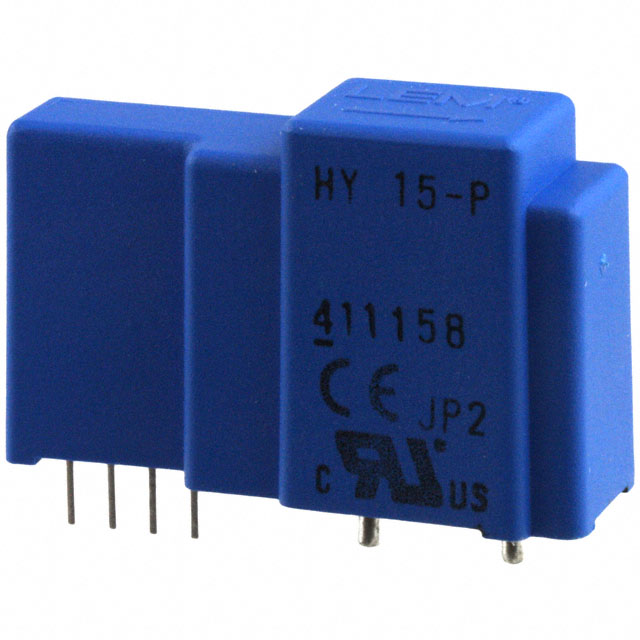

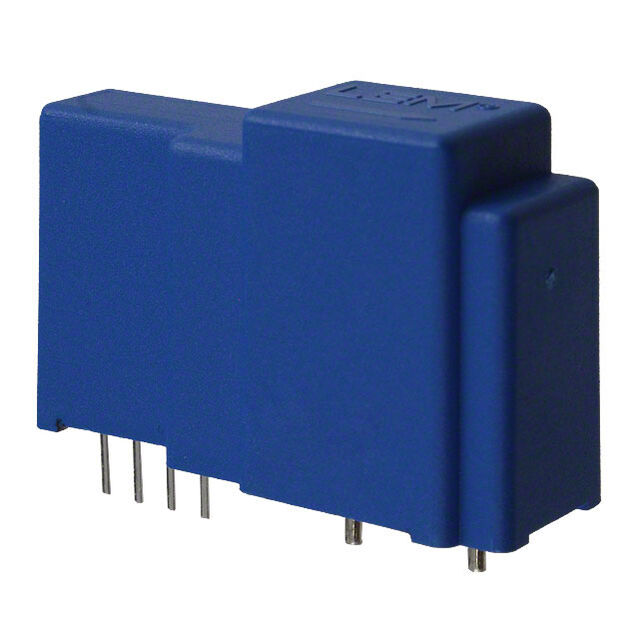

| Part Number | HY 10-P | HY 15-P | HY 15-P/SP1 | HAH1DRW 300-S/SP5 |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR CURRENT HALL 10A AC/DC | SENSOR CURRENT HALL 15A AC/DC | Linear IC | TRANSDUCER |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Tray | Tray | Bulk | Bulk |
