HZ0805C202R-00

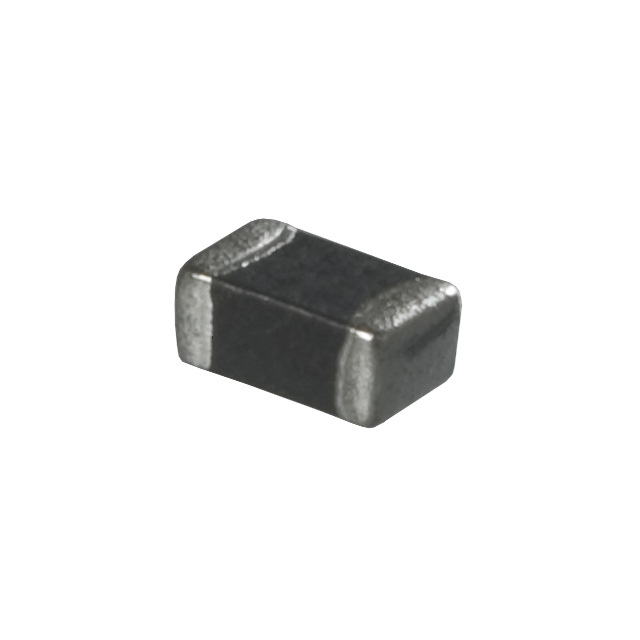

lmages are for reference only.HZ0805C202R-00
FERRITE BEAD 2K OHM 0805 1LN
Datasheet0805 (2012 Metric)
82,723 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 kOhms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 300mA 500mOhm
HZ0805C202R-00
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | HZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 2 kOhms @ 100 MHz |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 500mOhm |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.043" (1.10mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HZ0805C202R-10 | HZ0805B222R-10 | HZ0805B252R-10 | HZ0805B272R-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 2K OHM 0805 1LN | FERRITE BEAD 2.2 KOHM 0805 1LN | FERRITE BEAD 2.5K OHM 0805 1LN | FERRITE BEAD 2.7K OHM 0805 1LN |
| Series | 0805 | 0805 | 0805 | 0805 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
