ICF0536V1NC
lmages are for reference only.ICF0536V1NC
DC DC CONVERTER 28V 1.008KW
DatasheetFull Brick
48,130 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 28V 36A 9V - 36V Input
ICF0536V1NC
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | iCF (1000W) |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 36A |
| Power (Watts) | 1.008 kW |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 96.2% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Full Brick |
| Size / Dimension | 4.70" L x 2.50" W x 0.52" H (119.4mm x 63.5mm x 13.2mm) |
| Supplier Device Package | Full Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | ICF05 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |

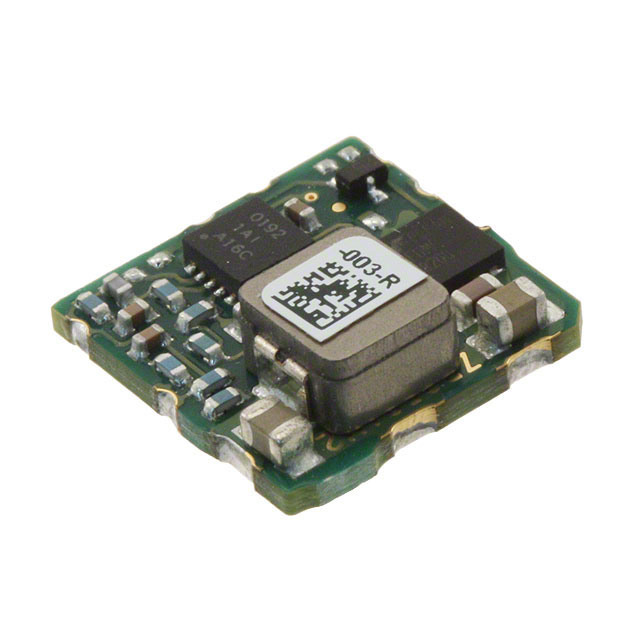

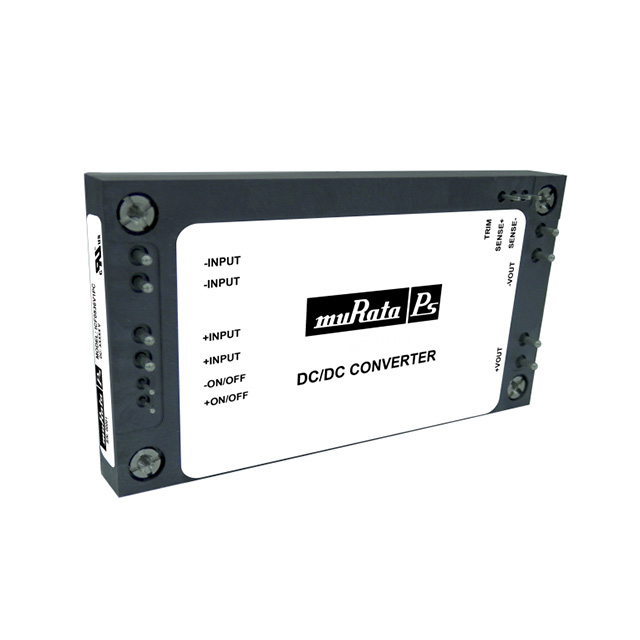

| Part Number | ICF0536V1PC | ICF05003A006V-001-R | ICF05003A006V-003-R | ICF05003A006V-006-R |
| Manufacturer | Murata Power Solutions Inc. | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER 28V 1.008KW | DC DC CONVERTER 0.6-3.63V 11W | DC DC CONVERTER 0.6-3.63V | DC DC CONVERTER 0.6-3.63V 11W |
| Series | Murata Power Solutions Inc. | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
