ICPL2611

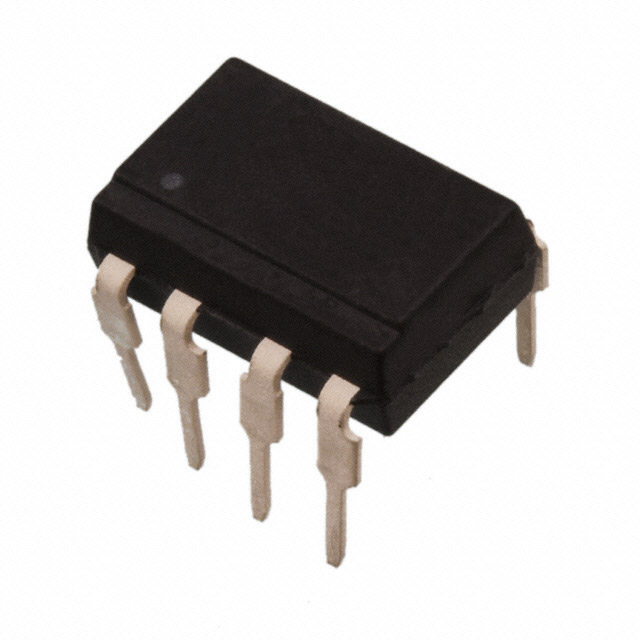

lmages are for reference only.ICPL2611
8 PIN HIGH SPEED, LOGIC OUTPUT,
Datasheet8-DIP (0.300", 7.62mm)
48,763 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 10Mbps Tri-State 5000Vrms 1 Channel 20kV/µs CMTI 8-DIP
ICPL2611
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | ICPL2611 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Tri-State |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 40ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 7V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | ICPL2611 | ICPL2611G | ICPL2611G | ICPL2611SM |
| Manufacturer | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 8 PIN HIGH SPEED, LOGIC OUTPUT, | 8 PIN HIGH SPEED, LOGIC OUTPUT, | 8 PIN HIGH SPEED, LOGIC OUTPUT, | 8 PIN HIGH SPEED, LOGIC OUTPUT, |
| Series | ICPL2611 | ICPL2611 | ICPL2611 | ICPL2611 |
| Packaging | Tube | Tube | Tube | Tube |
