IDB06S60C

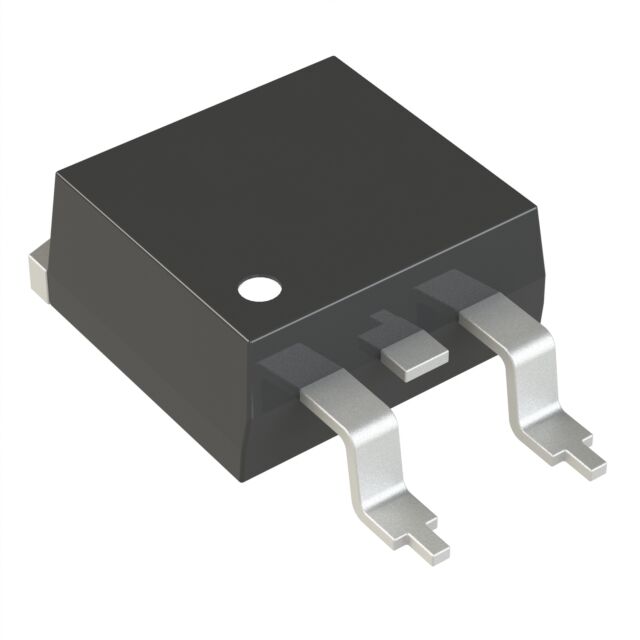

lmages are for reference only.IDB06S60C
DIODE SIL CARB 600V 6A TO263-3-2
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
99,171 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 600 V 6A Surface Mount PG-TO263-3-2
IDB06S60C
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Infineon Technologies |
| Series | CoolSiC™+ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 6A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 6 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 80 µA @ 600 V |
| Capacitance @ Vr, F | 280pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | PG-TO263-3-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | IDB06 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IDB06S60CATMA2 | IDB09E60ATMA1 | IDB10S60C | IDB10S60CATMA2 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DIODE SIL CARB 600V 6A TO263-3-2 | DIODE GP 600V 19.3A TO263-3-2 | DIODE SIL CARB 600V 10A TO263-3 | DIODE SIL CARB 600V 10A TO263-3 |
| Series | CoolSiC™+ | - | CoolSiC™+ | CoolSiC™+ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
