IEA48003A280V-001-R

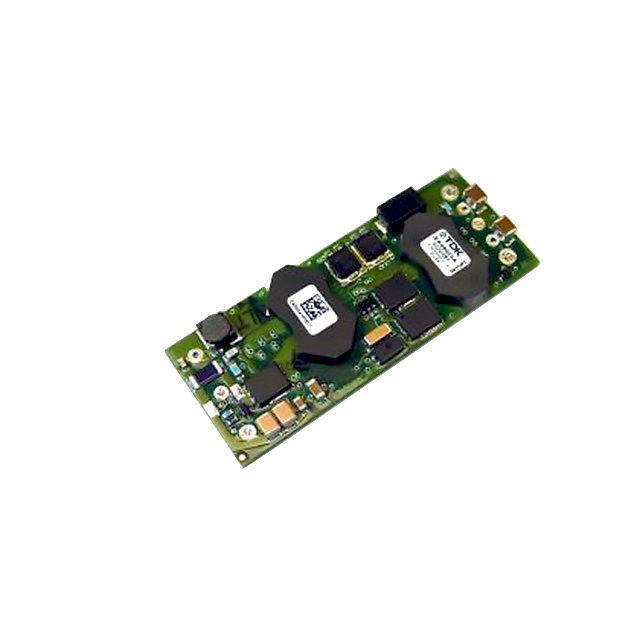

lmages are for reference only.IEA48003A280V-001-R
DC DC CONVERTER 28V 75W
Datasheet8-DIP Module, 1/8 Brick
58,791 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 28V 2.67A 36V - 75V Input
IEA48003A280V-001-R
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | iEA (75W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.67A |
| Power (Watts) | 75 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | IEA48003 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | IEA48003A280V-005-R | IEA48004A180V-001-R | IEA48005A150V-001-R | IEA48007A120V-000-R |
| Manufacturer | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 28V 75W | DC DC CONVERTER 18V 68W | DC DC CONVERTER 15V 68W | DC DC CONVERTER 12V 78W |
| Series | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| Packaging | Tray | Tray | Tray | Tray |
