Product CatalogPart Number
IEQ0524D12
Manufacturer
XP PowerDescription
DC DC CONVERTER +/-12V 5W
Datasheet
DatasheetPackage
8-SIP Module, 7 Leads
In Stock
13,002 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IEQ0524D12
IEQ0524D12
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 209mA, 209mA 9V - 36V Input
Quick Inquiry
IEQ0524D12
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | XP Power |
| Series | IEQ05 (5W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 209mA, 209mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 90°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm) |
| Supplier Device Package | 8-SIP |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | IEQ0524 |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IEQ0524D15 | IEQ0524S05 | IEQ0524S12 | IEQ0524S15 |
| Manufacturer | XP Power | XP Power | XP Power | XP Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-15V 5W | DC DC CONVERTER 5V 5W | DC DC CONVERTER 12V 5W | DC DC CONVERTER 15V 5W |
| Series | XP Power | XP Power | XP Power | XP Power |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products

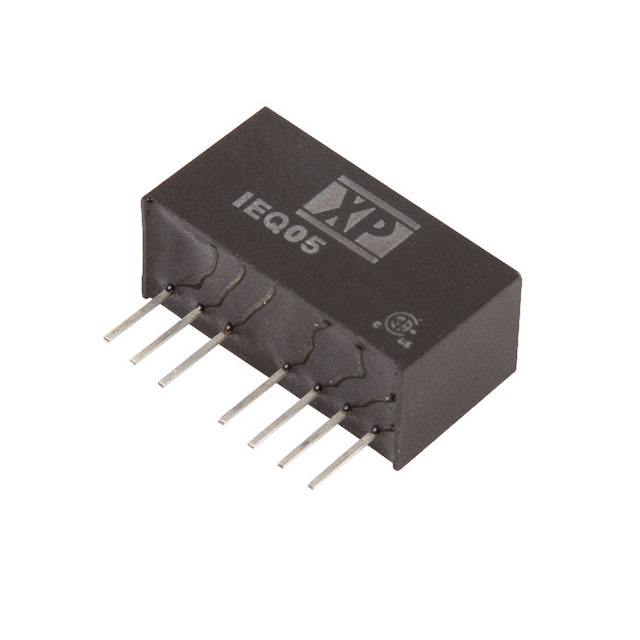

IEQ0512D12
