IF1505XT-1WR3

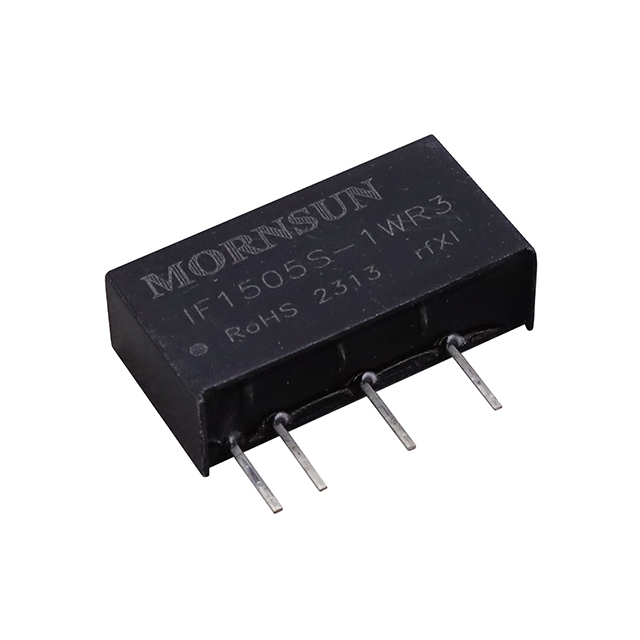

lmages are for reference only.IF1505XT-1WR3
DC-DC ISOLATED 1 W 14.25~15.75V
Datasheet10-SMD Module, 6 Leads
96,494 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 200mA 14.25V - 15.75V Input
IF1505XT-1WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 14.25V |
| Voltage - Input (Max) | 15.75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 68% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | IF1203S | IF1205S | IF1205S-1WR3 | IF1205XT-1WR3 |
| Manufacturer | XP Power | XP Power | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 3.3V 1W | DC DC CONVERTER 5V 1W | DC-DC ISOLATED 1 W 11.4~12.6V | DC-DC ISOLATED 1 W 11.4~12.6V |
| Series | XP Power | XP Power | ||
| Packaging | Tube | Tube | IF_S-1WR3 | IF_XT-1WR3 |
