IGBRC5000CJJPCT5
lmages are for reference only.IGBRC5000CJJPCT5
RES BACK CONTACT PD 5 OHM 5% 500
DatasheetNonstandard
32,352 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 Ohms ±5% 3W Chip Resistor Nonstandard Bonding Mountable, Moisture Resistant Thin Film
IGBRC5000CJJPCT5
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Electro-Films |
| Series | IGBR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 5 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 3W |
| Composition | Thin Film |
| Features | Bonding Mountable, Moisture Resistant |
| Temperature Coefficient | ±500ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Nonstandard |
| Supplier Device Package | 0606 |
| Ratings | - |
| Size / Dimension | 0.059" L x 0.059" W (1.50mm x 1.50mm) |
| Height - Seated (Max) | 0.012" (0.30mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

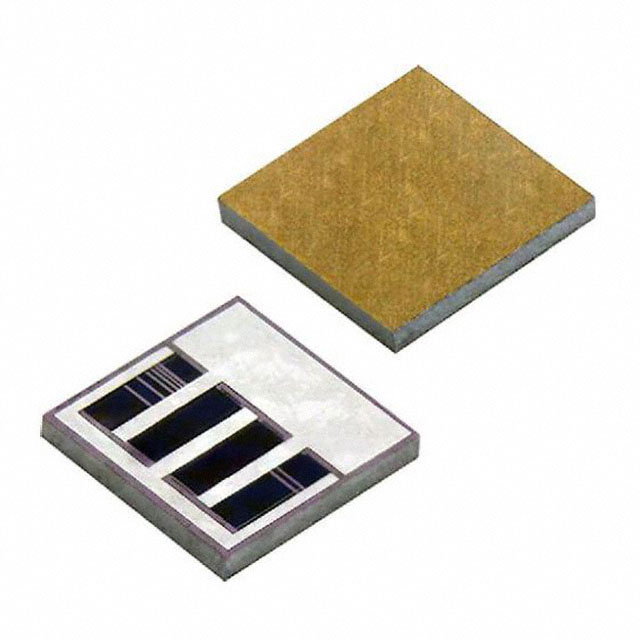

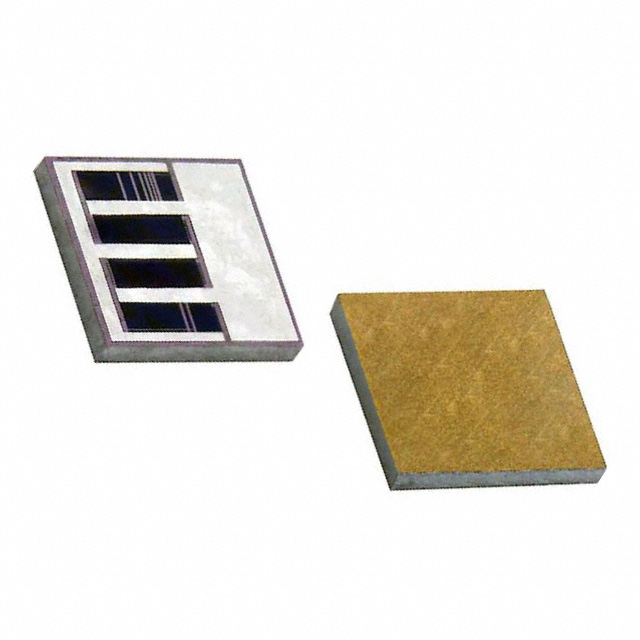

| Part Number | IGBRC5000CJJNCT5 | IGBRB1000BJANCT5 | IGBRB1000BJAPCT5 | IGBRB5000CJANCT5 |
| Manufacturer | Vishay Electro-Films | Vishay Electro-Films | Vishay Electro-Films | Vishay Electro-Films |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES BACK CONTACT NI 5 OHM 5% 500 | RES BACK CONTACT NI 10 OHM 5% 10 | RES BACK CONTACT PD 10 OHM 5% 10 | RES BACK CONTACT NI 5 OHM 5% 100 |
| Series | Vishay Electro-Films | Vishay Electro-Films | Vishay Electro-Films | Vishay Electro-Films |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
