IGLT65R055D2

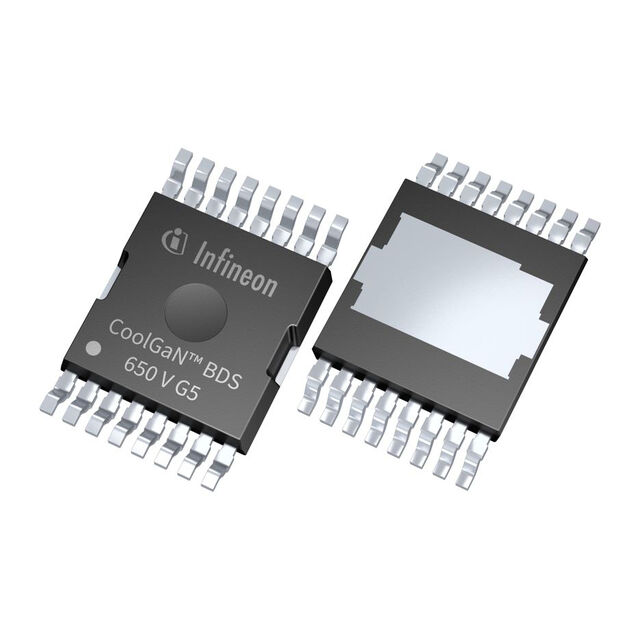

lmages are for reference only.IGLT65R055D2
GAN TRANSISTOR 650 V G5
Datasheet16-PowerSOP Module
14,002 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 31A (Tc) 104W (Tc) Surface Mount PG-HDSOP-16-8
IGLT65R055D2
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies Canada Inc. |
| Series | CoolGaN™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | - |
| Vgs(th) (Max) @ Id | 1.6V @ 2.6mA |
| Vgs (Max) | -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 330 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-HDSOP-16-8 |
| Package / Case | 16-PowerSOP Module |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 6.6 nC @ 3 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | IGLT65R055D2ATMA1 | IGLT65R025D2AUMA1 | IGLT65R035D2ATMA1 | IGLT65R045D2 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies Canada Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGLT65R055D2ATMA1 | IGLT65R025D2AUMA1 | IGLT65R035D2ATMA1 | GAN TRANSISTOR 650 V G5 |
| Series | CoolGaN™ | CoolGaN™ | CoolGaN™ | CoolGaN™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
