Product CatalogPart Number
IHD1EB390L
Manufacturer
Vishay DaleDescription
FIXED IND 39UH 1.7A 84 MOHM TH
Datasheet
DatasheetPackage
Axial
In Stock
47,871 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

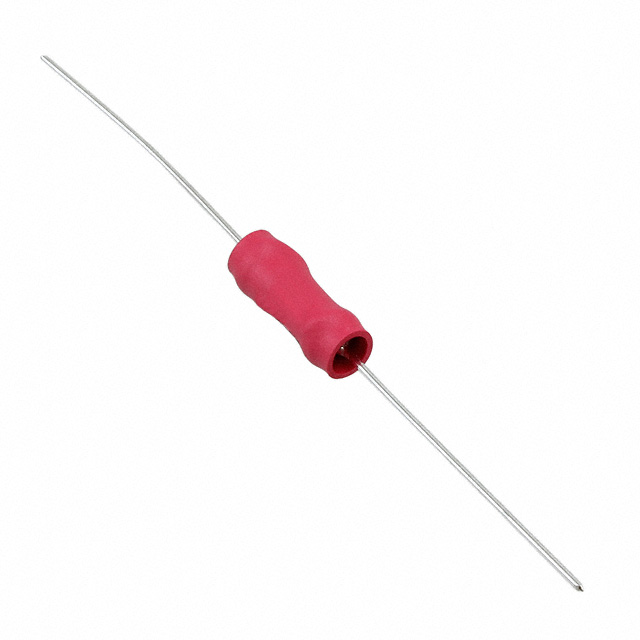

IHD1EB390L
IHD1EB390L
lmages are for reference only.Payment Methods
Delivery Services
39 µH Unshielded Drum Core, Wirewound Inductor 1.7 A 84mOhm Max Axial
Quick Inquiry
IHD1EB390L
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Vishay Dale |
| Series | IHD |
| Packaging | - |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 39 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | 1.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 84mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | IHD1EB390L | IHD1EB330L | IHD1EB331L | IHD1EB332L |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 39UH 1.7A 84 MOHM TH | FIXED IND 33UH 1.8A 75 MOHM TH | FIXED IND 330UH 620MA 650MOHM TH | FIXED IND 3.3MH 200MA 6.56OHM TH |
| Series | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Packaging | Bulk |
