Product CatalogPart Number
IHLM2525CZER100M01
Manufacturer
Vishay DaleDescription
FIXED IND 10UH 3A 105 MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
83,863 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IHLM2525CZER100M01
IHLM2525CZER100M01

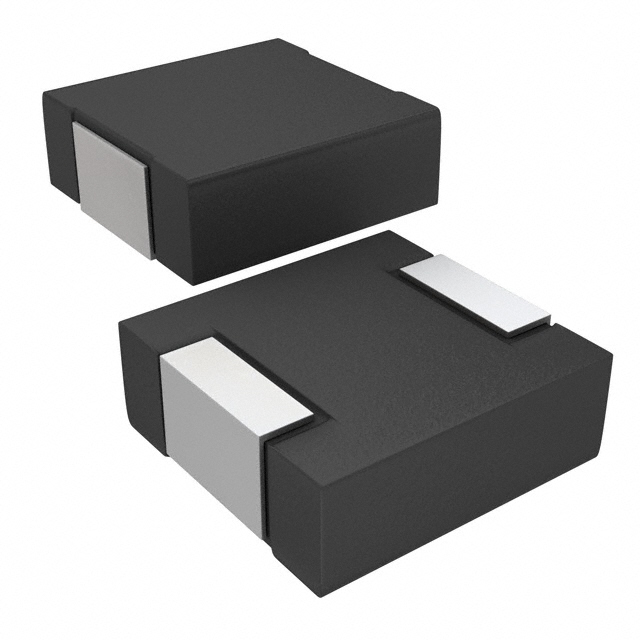

lmages are for reference only.Payment Methods
Delivery Services
10 µH Shielded Inductor 3 A 105mOhm Max Nonstandard
Quick Inquiry
IHLM2525CZER100M01
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Vishay Dale |
| Series | IHLM-2525CZ-01 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | 7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 105mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | IHLM2525CZER100M06 | IHLM2525CZER100M06 | IHLM2525CZER100M07 | IHLM2525CZER1R0M01 |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 3A 97.71 MOHM SMD | FIXED IND 10UH 3A 97.71 MOHM SMD | FIXED IND 10UH 3A 97.71 MOHM SMD | FIXED IND 1UH 11A 10 MOHM SMD |
| Series | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
