Product CatalogPart Number
IKW30N65ES5XKSA1
Manufacturer
Infineon TechnologiesDescription
IGBT TRENCH 650V 62A TO247-3
Datasheet
DatasheetPackage
TO-247-3
In Stock
75,695 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IKW30N65ES5XKSA1
IKW30N65ES5XKSA1
lmages are for reference only.Payment Methods
Delivery Services
IGBT Trench 650 V 62 A 188 W Through Hole PG-TO247-3
Quick Inquiry
IKW30N65ES5XKSA1
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Infineon Technologies |
| Series | TrenchStop™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 62 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 30A |
| Power - Max | 188 W |
| Switching Energy | 560µJ (on), 320µJ (off) |
| Input Type | Standard |
| Gate Charge | 70 nC |
| Td (on/off) @ 25°C | 17ns/124ns |
| Test Condition | 400V, 30A, 13Ohm, 15V |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3 |
| Reverse Recovery Time (trr) | 75 ns |
| Base Product Number | IKW30N65 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IKW30N60DTPXKSA1 | IKW30N60H3FKSA1 | IKW30N60TAFKSA1 | IKW30N60TFKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT TRENCH FS 600V 53A TO247-3 | IGBT TRENCH FS 600V 60A TO247-3 | IGBT TRENCH/FS 600V 60A TO247-3 | IGBT TRENCH FS 600V 60A TO247-3 |
| Series | TrenchStop™ | TrenchStop® | TrenchStop® | TrenchStop® |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
IKW30N60DTPXKSA1
Infineon Technologies
IKW30N60H3FKSA1
Infineon Technologies

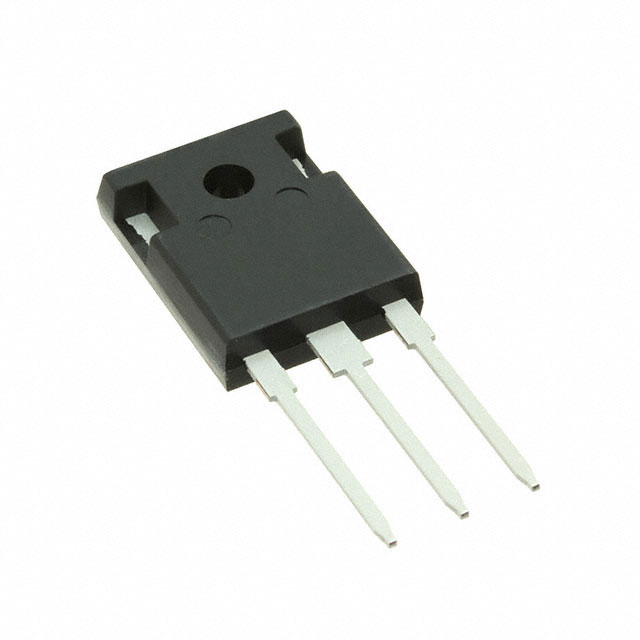

IKW30N60TAFKSA1
Infineon Technologies
IKW30N60TFKSA1
Infineon Technologies

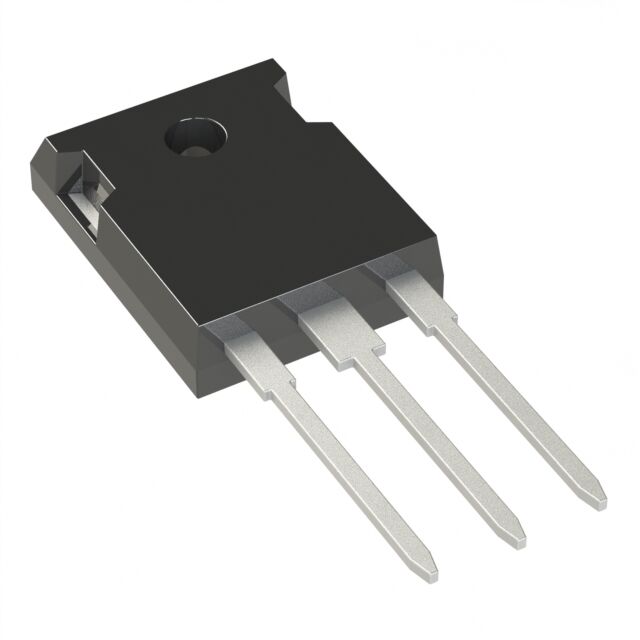

IKW30N65EL5XKSA1
