Product CatalogPart Number
ILC0603ERR10J
Manufacturer
Vishay DaleDescription
FIXED IND 100NH 300MA 1 OHM SMD
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
19,430 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ILC0603ERR10J
ILC0603ERR10J

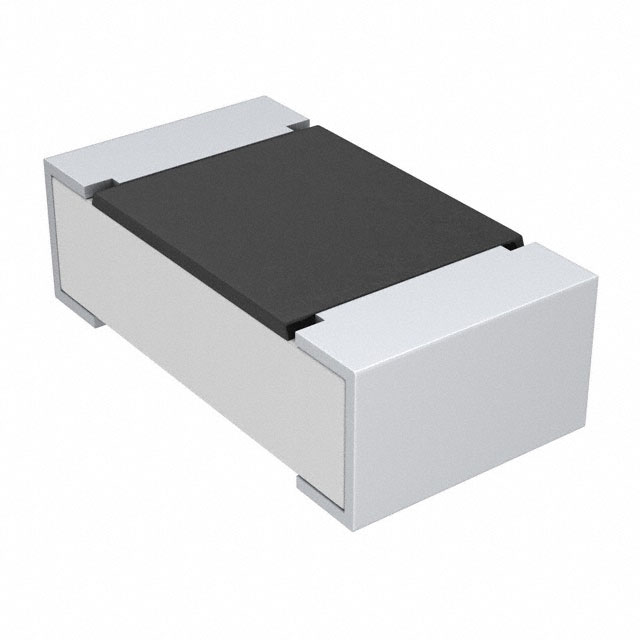

lmages are for reference only.Payment Methods
Delivery Services
100 nH Unshielded Multilayer Inductor 300 mA 1Ohm Max 0603 (1608 Metric)
Quick Inquiry
ILC0603ERR10J
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Vishay Dale |
| Series | ILC-0603 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 100 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | 12 @ 100MHz |
| Frequency - Self Resonant | 600MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  | |  |  |
| Part Number | ILC0603ERR12J | ILC0603ERR12J | ILC0603ERR15J | ILC0603ERR18J |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 120NH 300MA 1.2OHM SMD | FIXED IND 120NH 300MA 1.2OHM SMD | FIXED IND 150NH 300MA 1.2OHM SMD | FIXED IND 180NH 300MA 1.3OHM SMD |
| Series | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
