IMB06ITS
lmages are for reference only.IMB06ITS
RELAY TELECOM SPST 2A 12V
Datasheet-
27,834 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay SPST-NO (1 Form A) Through Hole
IMB06ITS
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | IM, AXICOM |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 400VDC - Max |
| Load - Max Switching | 500VA, 440W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | UR |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Base Product Number | 1462041 |
| Coil Current | 11.7 mA |
| Coil Resistance | 1.029 kOhms |
| Product Attribute |  |
 |
 |
 |

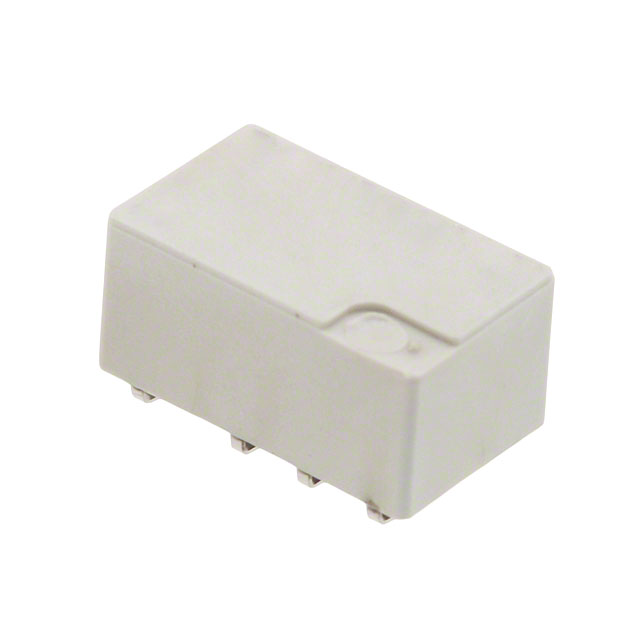

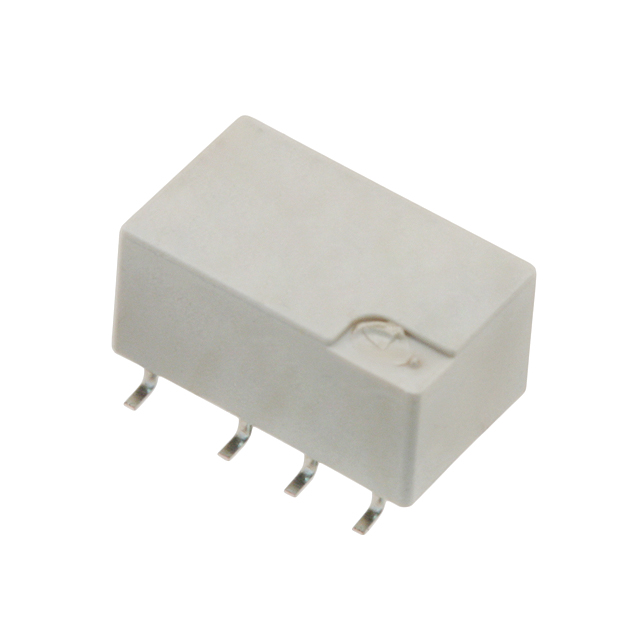

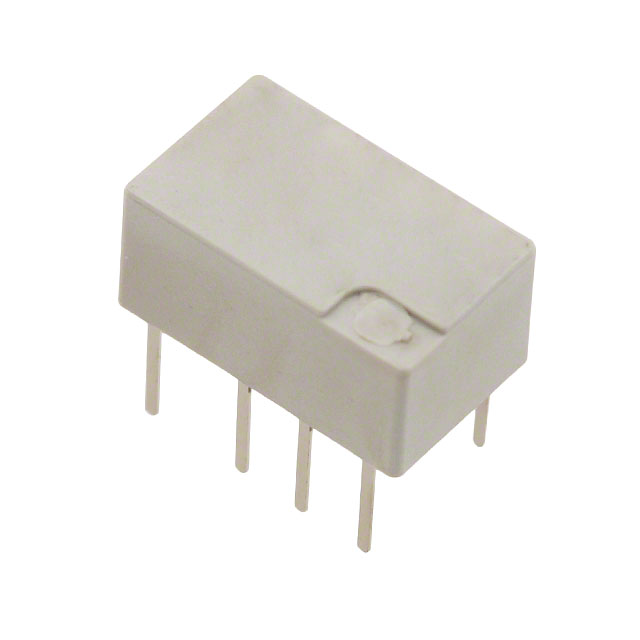

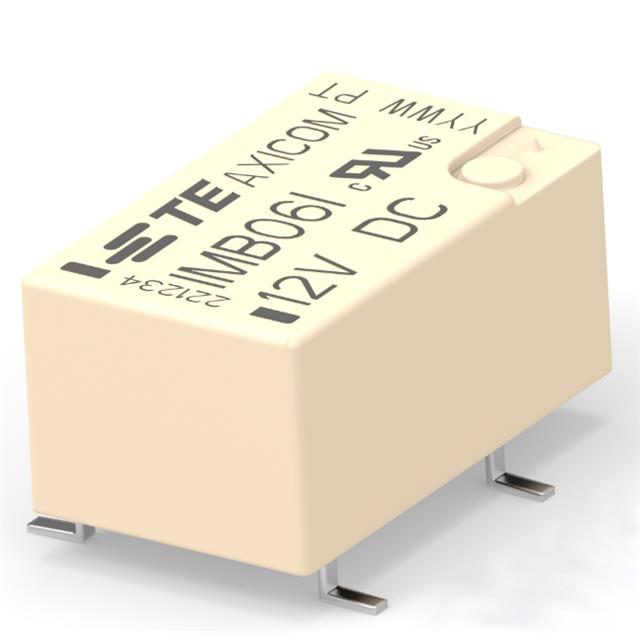

| Part Number | IMB06IGR | IM00GR | IM00JR | IM00TS |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RELAY TELECOM SPST 2A 12V | RELAY TELECOM DPDT 2A 1.5V | RELAY TELECOM DPDT 2A 1.5V | RELAY TELECOM DPDT 2A 1.5V |
| Series | IM, AXICOM | IM, AXICOM | IM, AXICOM | IM, AXICOM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Box |
