Product CatalogPart Number
IMC1210BNR15J
Manufacturer
Vishay DaleDescription
FIXED IND 150NH 548MA 250MOHM SM
Datasheet
DatasheetPackage
1210 (3225 Metric)
In Stock
18,317 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IMC1210BNR15J
IMC1210BNR15J

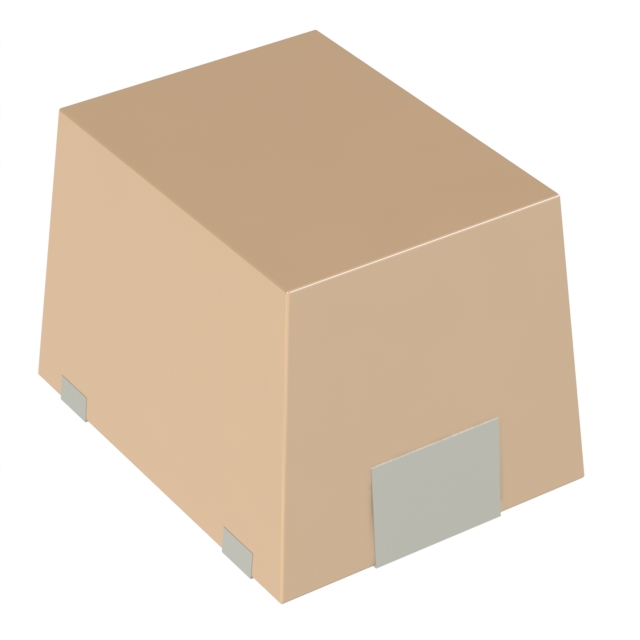

lmages are for reference only.Payment Methods
Delivery Services
150 nH Unshielded Drum Core, Wirewound Inductor 548 mA 250mOhm Max 1210 (3225 Metric)
Quick Inquiry
IMC1210BNR15J
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Vishay Dale |
| Series | IMC-1210 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 150 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 548 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 450MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | IMC1210BNR15K | IMC1210BNR15M | IMC1210BNR10J | IMC1210BNR10K |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FIXED IND 150NH 548MA 250MOHM SM | FIXED IND 150NH 548MA 250MOHM SM | FIXED IND 100NH 450MA 440MOHM SM | FIXED IND 100NH 450MA 440MOHM SM |
| Series | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Packaging | Bulk | Bulk | Bulk | Bulk |
