Product CatalogPart Number
IMSA-13103B-08Y900
Manufacturer
IRISO USA Inc.Description
HEADER SMT RA 8POS KEY-A
Datasheet
DatasheetPackage
-
In Stock
73,943 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IMSA-13103B-08Y900
IMSA-13103B-08Y900
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
Quick Inquiry
IMSA-13103B-08Y900
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | IRISO USA Inc. |
| Series | 13103B |
| Packaging | Cut Tape (CT)-->Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.256" (6.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 50VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Applications | - |
| Base Product Number | IMSA-13103B |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

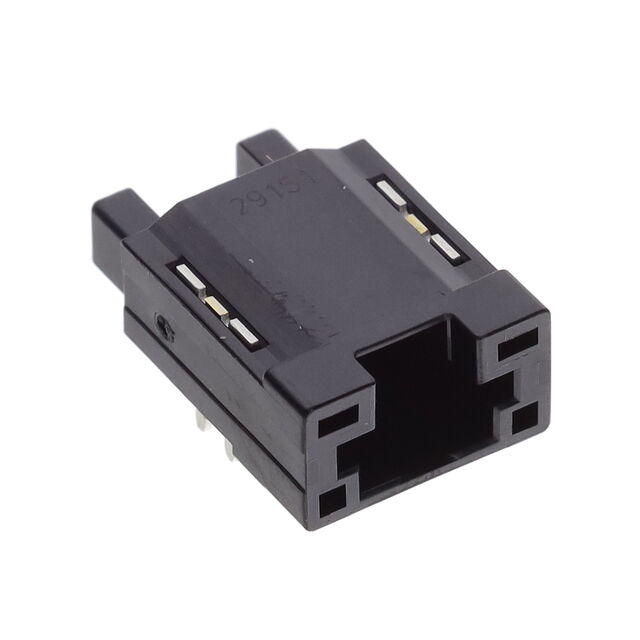

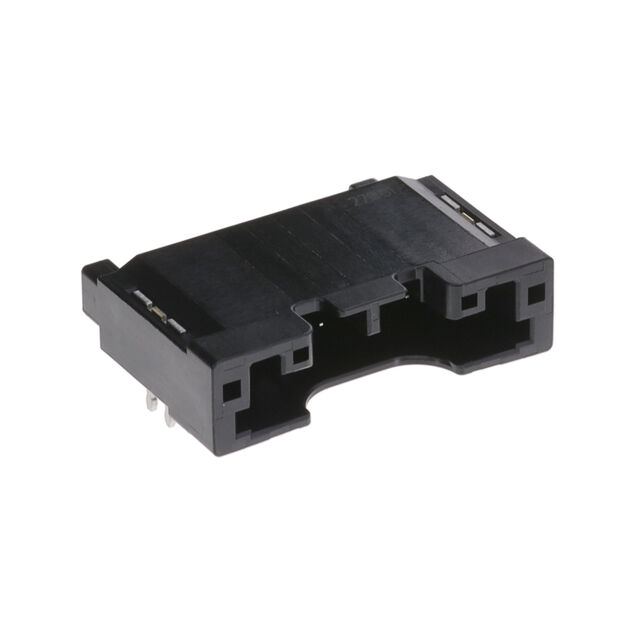

| Part Number | IMSA-13103B-08Y901 | IMSA-13103B-02A-TR | IMSA-13103B-02B-TR | IMSA-13103B-02Y900 |
| Manufacturer | IRISO USA Inc. | IRISO USA Inc. | IRISO USA Inc. | IRISO USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HEADER SMT RA 8POS KEY-B | HEADER SMT RA 2POS KEY-A | HEADER SMT RA 2POS KEY-B | HEADER SMT RA 2POS KEY-A |
| Series | 13103B | 13103B | 13103B | 13103B |
| Packaging | Cut Tape (CT)-->Tray | Bulk | Bulk | Cut Tape (CT)-->Tray |
Customers Also Interested in
Recommended Products

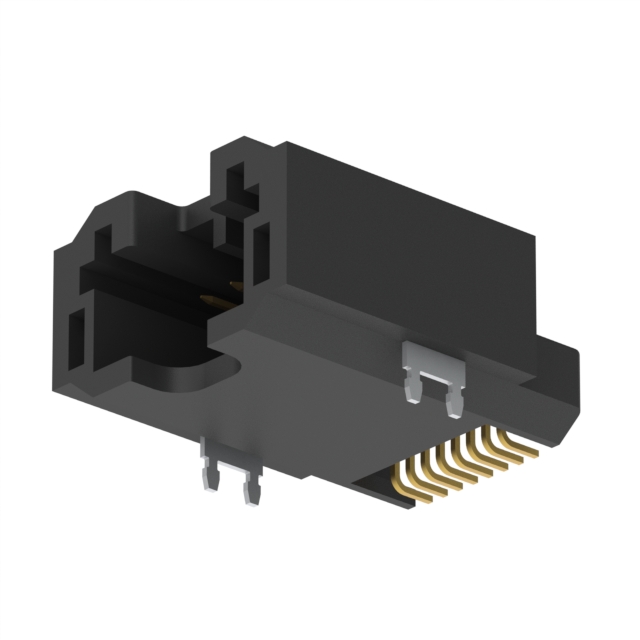

IMSA-13065B-2-08J-TR
IRISO USA Inc.

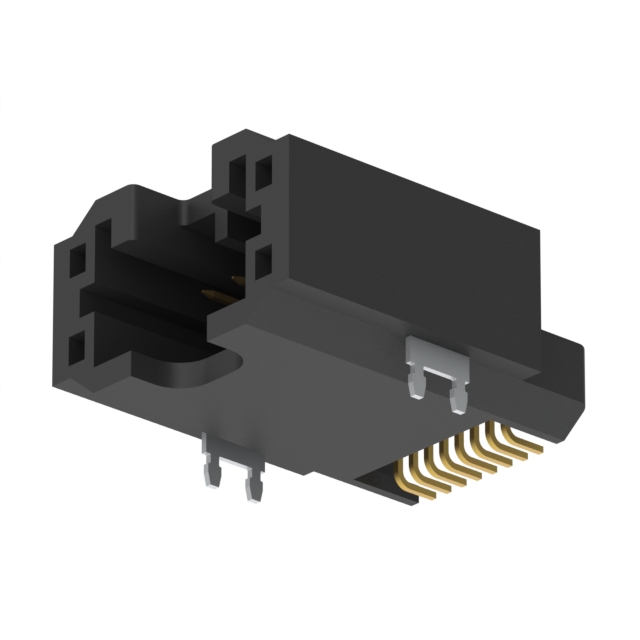

IMSA-13065B-2-08K-TR
IRISO USA Inc.
IMSA-13065B-2-08Y900
IRISO USA Inc.
IMSA-13065B-2-08Y901
IRISO USA Inc.
IMSA-13065B-2-08Y902
IRISO USA Inc.
IMSA-13065B-2-12J-TR
IRISO USA Inc.

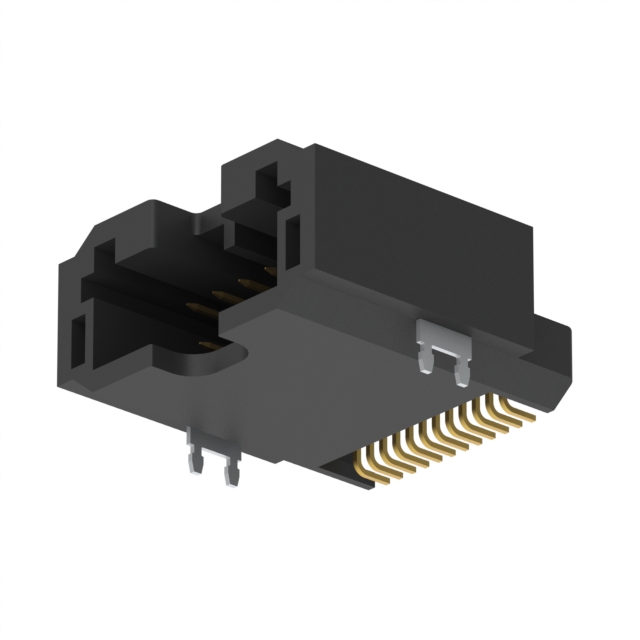

IMSA-13065B-2-12Y900
IRISO USA Inc.
IMSA-13065B-2-12Y901
IRISO USA Inc.

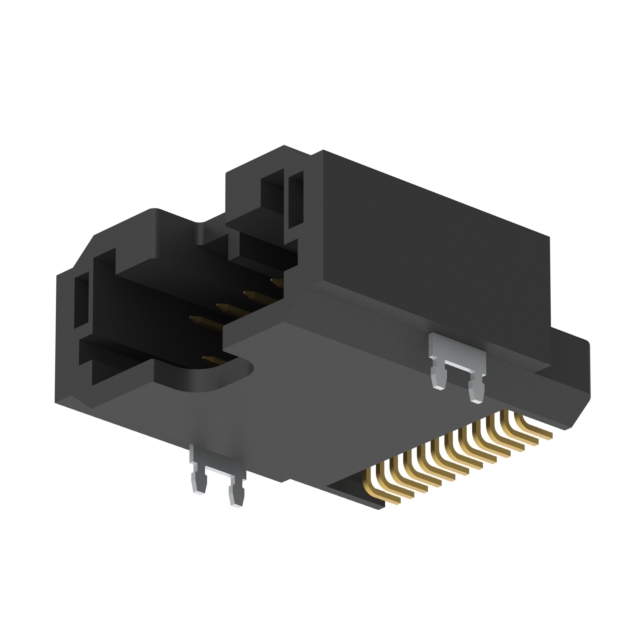

IMSA-13065B-2-12Y902
IRISO USA Inc.
IMSA-13065B-2-16J-TR
IRISO USA Inc.

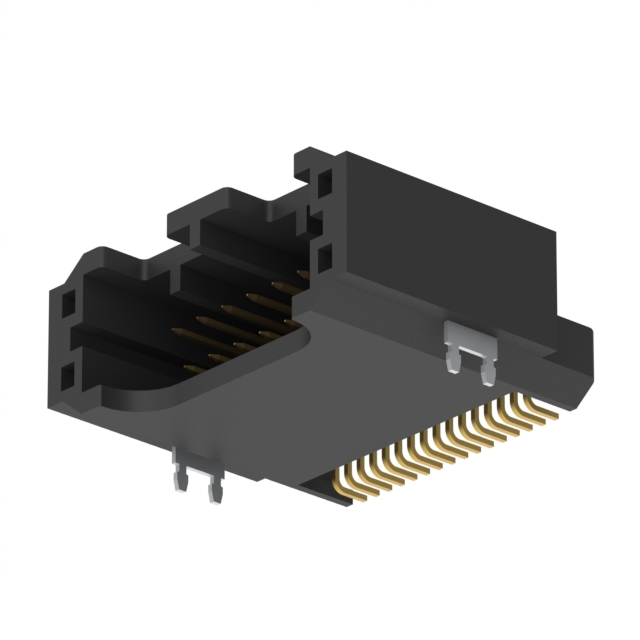

IMSA-13065B-2-16K-TR
IRISO USA Inc.
IMSA-13065B-2-16L-TR
IRISO USA Inc.

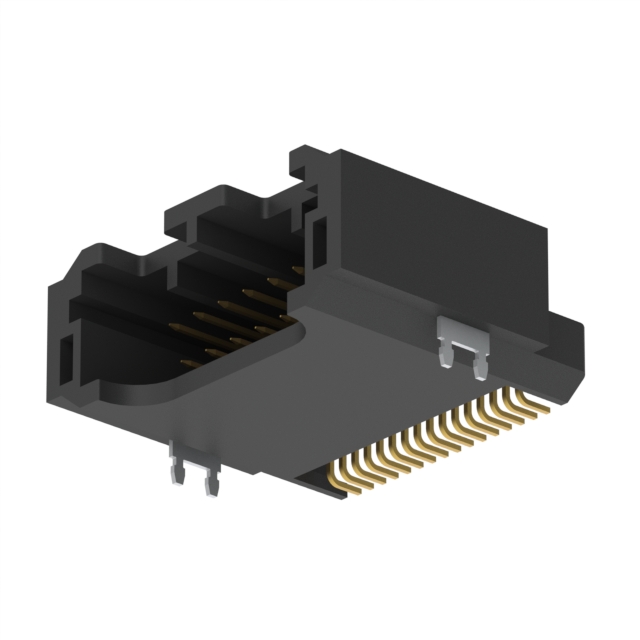

IMSA-13065B-2-16Y900
IRISO USA Inc.
IMSA-13065B-2-16Y901
IRISO USA Inc.
IMSA-13065B-2-16Y902
IRISO USA Inc.
IMSA-13065B-2-20J-TR
IRISO USA Inc.

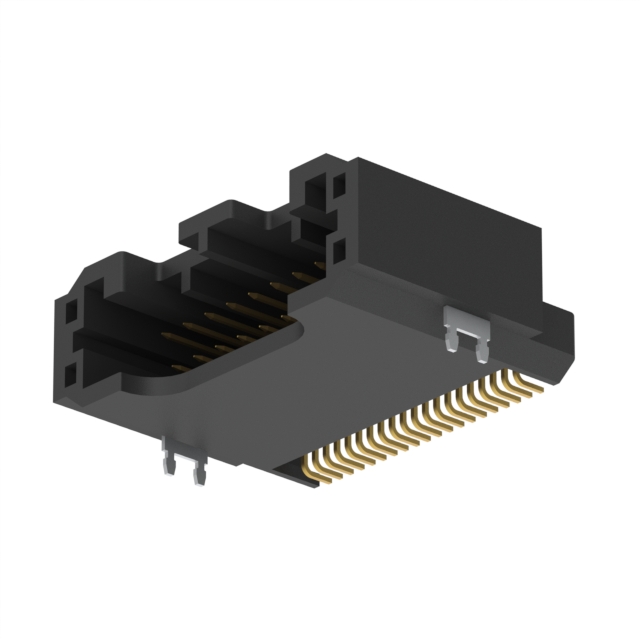

IMSA-13065B-2-20K-TR
IRISO USA Inc.

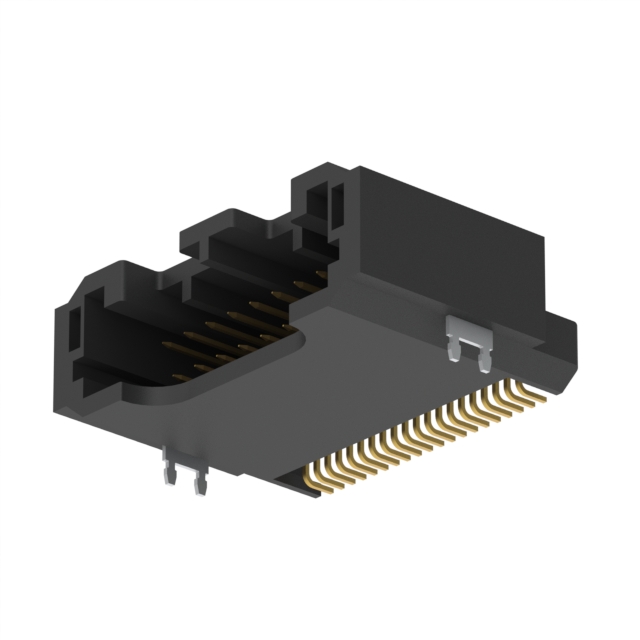

IMSA-13065B-2-20L-TR
