Product CatalogPart Number
IN-S66DATRYG
Manufacturer
InoluxDescription
LED RED/YLW-GRN CLEAR 0606 SMD
Datasheet
DatasheetPackage
0606 (1616 Metric)
In Stock
12,644 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IN-S66DATRYG
IN-S66DATRYG

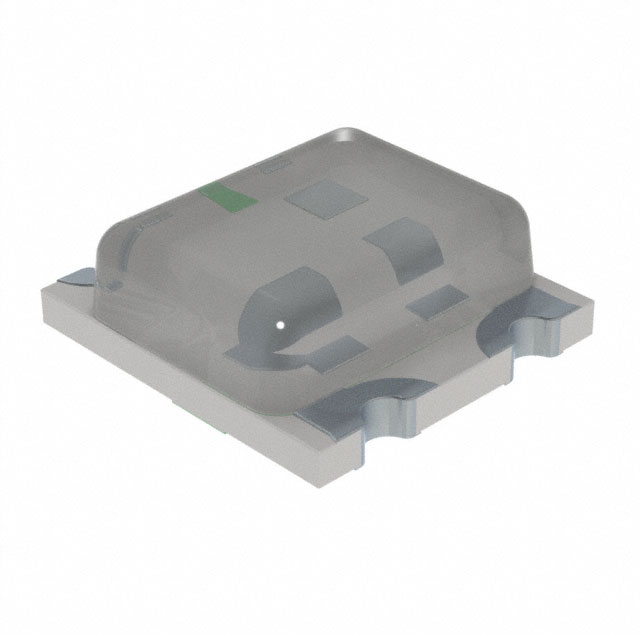

lmages are for reference only.Payment Methods
Delivery Services
Red, Yellow-Green 622nm Red, 572nm Yellow-Green LED Indication - Discrete 2.2V Red, 2.2V Yellow-Green 0606 (1616 Metric)
Quick Inquiry
IN-S66DATRYG
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Inolux |
| Series | IN-S66DATRYG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Lens Color | Clear |
| Lens Transparency | Clear |
| Millicandela Rating | 140mcd Red, 35mcd Yellow-Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 1.15mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 2.2V Yellow-Green |
| Current - Test | 20mA Red, 20mA Yellow-Green |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 572nm Yellow-Green |
| Wavelength - Peak | 630nm Red, 575nm Yellow-Green |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.55mm |
| Base Product Number | IN-S66 |
| Grade | - |
| Qualification | - |
