Product CatalogPart Number
IN-S85TBS5R5G5B
Manufacturer
InoluxDescription
LED RGB CLEAR 4SMD R/A
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
74,795 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IN-S85TBS5R5G5B
IN-S85TBS5R5G5B
lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 622nm Red, 518nm Green, 467nm Blue LED Indication - Discrete 2V Red, 2.8V Green, 2.8V Blue 4-SMD, No Lead
Quick Inquiry
IN-S85TBS5R5G5B
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Inolux |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 35mcd Red, 230mcd Green, 35mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.8V Green, 2.8V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 622nm Red, 518nm Green, 467nm Blue |
| Wavelength - Peak | 630nm Red, 523nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 2.00mm L x 1.10mm W |
| Height (Max) | 0.70mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

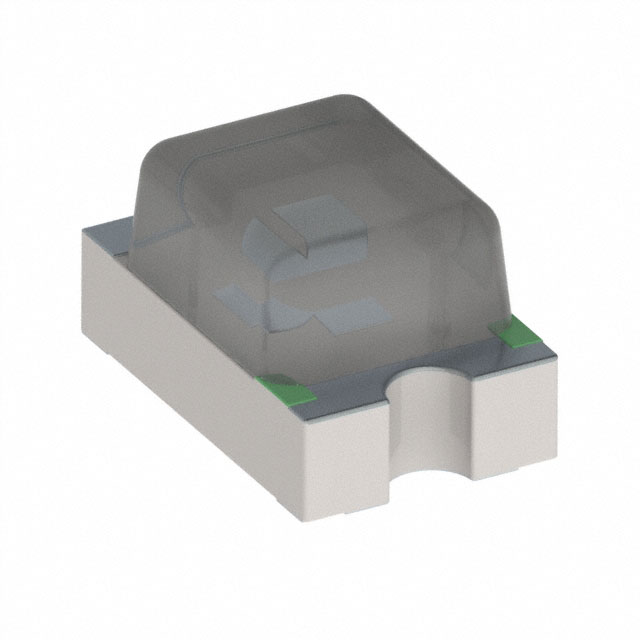

| Part Number | IN-S85AT5B | IN-S85AT5UW | IN-S85ATA | IN-S85ATG |
| Manufacturer | Inolux | Inolux | Inolux | Inolux |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED BLUE CLEAR 0805 SMD | LED WHITE CLEAR 0805 SMD | LED AMBER CLEAR 0805 SMD | LED GREEN CLEAR 0805 SMD |
| Series | Inolux | Inolux | Inolux | Inolux |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
