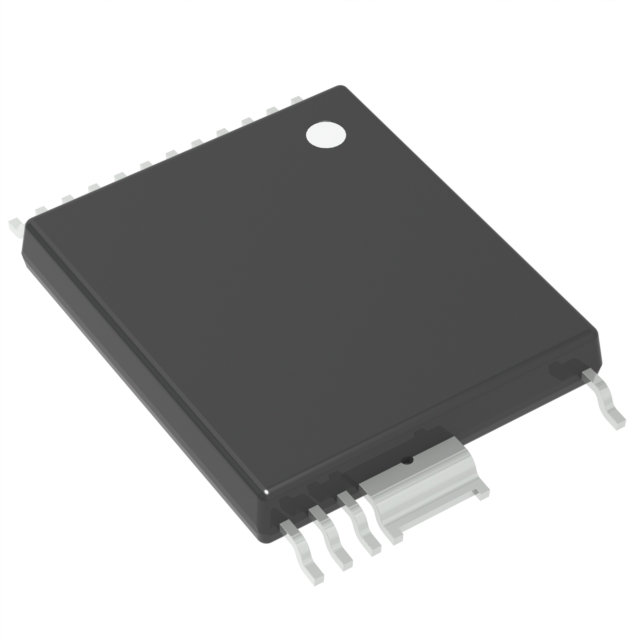

INN3165C-H104-TL
lmages are for reference only.INN3165C-H104-TL
IC OFFLINE SW MULT TOP 24INSOP
Datasheet24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
71,055 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback, Secondary Side SR Topology 100kHz InSOP-24D
INN3165C-H104-TL
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Power Integrations |
| Series | PowiGaN™, InnoSwitch™3-CE |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | - |
| Frequency - Switching | 100kHz |
| Power (Watts) | 22 W |
| Fault Protection | Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads |
| Supplier Device Package | InSOP-24D |
| Mounting Type | Surface Mount |
| Base Product Number | INN3165 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | INN3165C-H101-TL | INN3165C-H102-TL | INN3165C-H103-TL | INN3165C-H105-TL |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC OFFLINE SW MULT TOP 24INSOP | IC OFFLINE SW MULT TOP 24INSOP | IC OFFLINE SW MULT TOP 24INSOP | IC OFFLINE SW MULT TOP 24INSOP |
| Series | PowiGaN™, InnoSwitch™3-CE | PowiGaN™, InnoSwitch™3-CE | PowiGaN™, InnoSwitch™3-CE | PowiGaN™, InnoSwitch™3-CE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
