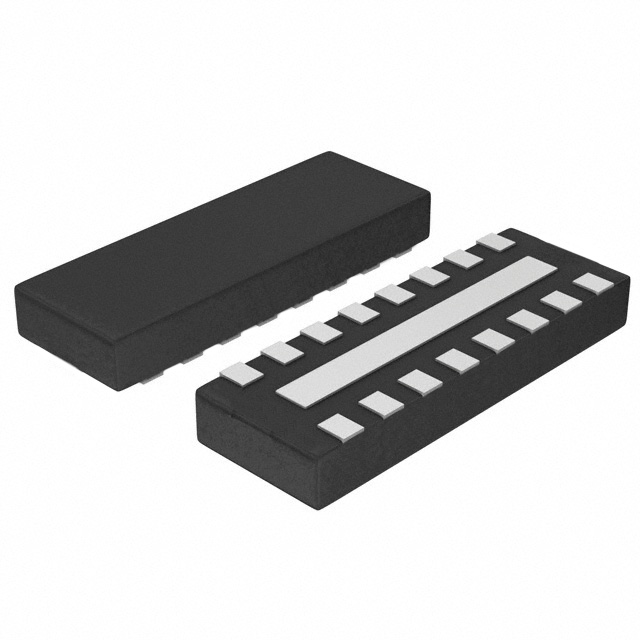

IP4254CZ16-8,118
lmages are for reference only.IP4254CZ16-8,118
FILTER RC(PI) 100 OHM/30PF SMD
Datasheet16-XFDFN Exposed Pad
83,445 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100Ohms, C = 30pF (Total) 16-XFDFN Exposed Pad
IP4254CZ16-8,118
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | NXP USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 28dB @ 800MHz ~ 3GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 30pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | LAN, WAN |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-XFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Height | 0.020" (0.50mm) |
| Number of Channels | 8 |
| Base Product Number | IP425 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | IP4254CZ16-8,118 | IP4254CZ16-8-TTL,1 | IP4254CZ16-8-TTL,1 | IP4254CZ12-6,118 |
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FILTER RC(PI) 100 OHM/30PF SMD | FILTER RC(PI) 100 OHM/30PF SMD | FILTER RC(PI) 100 OHM/30PF SMD | FILTER RC(PI) 100 OHM/30PF SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
