IPA029N06NM5SXKSA1
lmages are for reference only.IPA029N06NM5SXKSA1
MOSFET N-CH 60V 87A TO220
DatasheetTO-220-3 Full Pack
51,890 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 87A (Tc) 38W (Tc) Through Hole PG-TO220 Full Pack
IPA029N06NM5SXKSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ 5 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 87A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2.9mOhm @ 87A, 10V |
| Vgs(th) (Max) @ Id | 3.3V @ 36µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5300 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 38W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO220 Full Pack |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | IPA029 |
| Gate Charge (Qg) (Max) @ Vgs | 74 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IPA029N06NXKSA1 | IPA028N04NM3SXKSA1 | IPA028N08N3GXKSA1 | IPA030N10N3GXKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

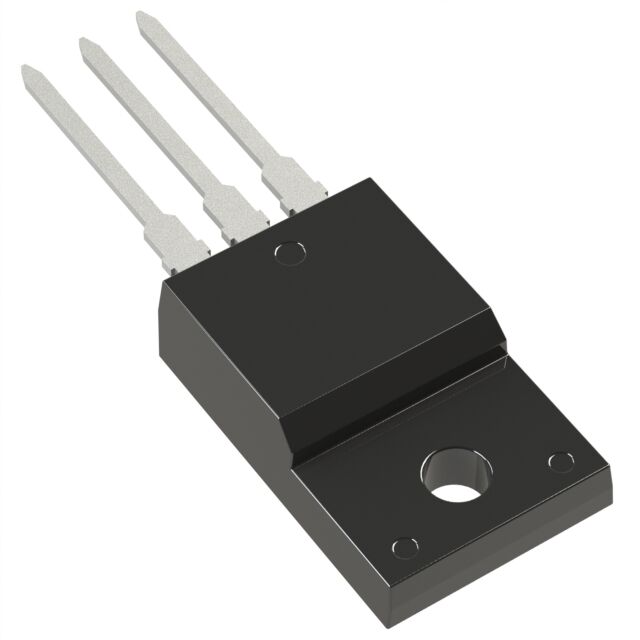

| Description | MOSFET N-CH 60V 84A TO220-FP | TRENCH <= 40V PG-TO220-3 | MOSFET N-CH 80V 89A TO220-FP | MOSFET N-CH 100V 79A TO220-FP |
| Series | OptiMOS™ | OptiMOS™ | OptiMOS™ | OptiMOS™ |
| Packaging | Tube | Tube | Tube | Tube |
