IPA65R190CFDXKSA2

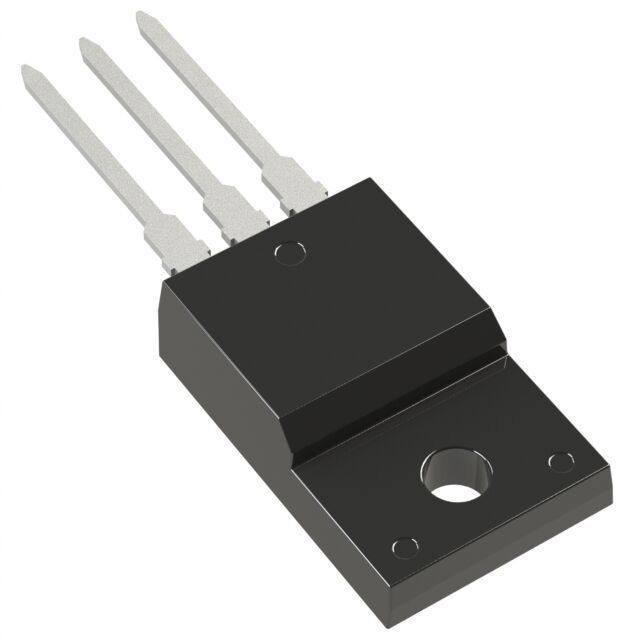

lmages are for reference only.IPA65R190CFDXKSA2
MOSFET N-CH 650V 17.5A TO220
DatasheetTO-220-3 Full Pack
15,949 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 17.5A (Tc) 34W (Tc) Through Hole PG-TO220-FP
IPA65R190CFDXKSA2
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | CoolMOS™ CFD2 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 17.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 7.3A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 700µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1850 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 34W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO220-FP |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | IPA65R |
| Gate Charge (Qg) (Max) @ Vgs | 68 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IPA65R190CFDXKSA1 | IPA65R110CFDXKSA1 | IPA65R110CFDXKSA2 | IPA65R125C7XKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 650V 17.5A TO220 | MOSFET N-CH 650V 31.2A TO220 | MOSFET N-CH 650V 31.2A TO220 | MOSFET N-CH 650V 10A TO220-FP |
| Series | CoolMOS™ | CoolMOS™ | CoolMOS™ CFD2 | CoolMOS™ C7 |
| Packaging | Tube | Tube | Tube | Tube |
