IPG20N04S4L08ATMA1

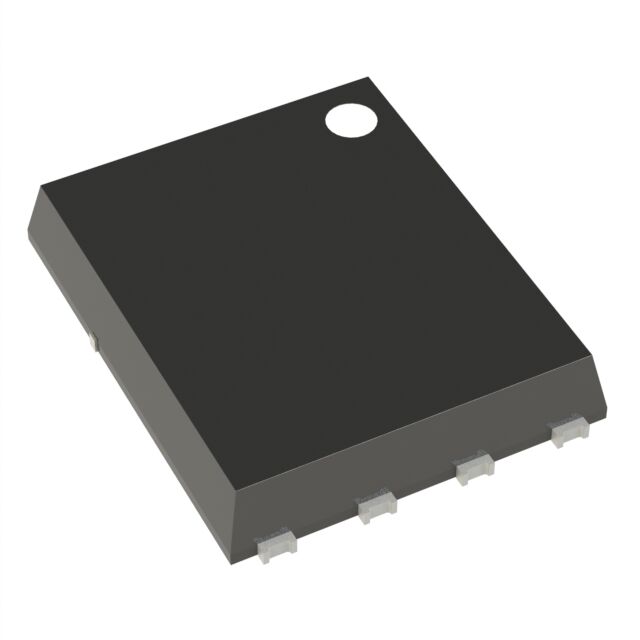

lmages are for reference only.IPG20N04S4L08ATMA1
MOSFET 2N-CH 40V 20A 8TDSON
Datasheet8-PowerVDFN
94,972 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 40V 20A 54W Surface Mount PG-TDSON-8-4
IPG20N04S4L08ATMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 20A |
| Rds On (Max) @ Id, Vgs | 8.2mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 22µA |
| Gate Charge (Qg) (Max) @ Vgs | 39nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 3050pF @ 25V |
| Power - Max | 54W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PG-TDSON-8-4 |
| Base Product Number | IPG20N |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | IPG20N04S4L07AATMA1 | IPG20N04S4L07ATMA1 | IPG20N04S4L08AATMA1 | IPG20N04S408AATMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 40V 20A 8TDSON | MOSFET 2N-CH 40V 20A 8TDSON | MOSFET 2N-CH 40V 20A 8TDSON | MOSFET 2N-CH 40V 20A 8TDSON |
| Series | OptiMOS™ | OptiMOS™ | OptiMOS™ | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
