Product CatalogPart Number
IPL60R125C7AUMA1
Manufacturer
Infineon TechnologiesDescription
MOSFET N-CH 600V 17A 4VSON
Datasheet
DatasheetPackage
4-PowerTSFN
In Stock
99,644 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IPL60R125C7AUMA1
IPL60R125C7AUMA1
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 600 V 17A (Tc) 103W (Tc) Surface Mount PG-VSON-4
Quick Inquiry
IPL60R125C7AUMA1
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | CoolMOS™ C7 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 7.8A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 390µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 103W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-VSON-4 |
| Package / Case | 4-PowerTSFN |
| Base Product Number | IPL60R |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | IPL60R060CFD7AUMA1 | IPL60R065C7AUMA1 | IPL60R065P7AUMA1 | IPL60R075CFD7AUMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N CH | MOSFET HIGH POWER_NEW | MOSFET N-CH 600V 41A 4VSON | MOSFET N-CH 600V 33A 4VSON |
| Series | CoolMOS™ CFD7 | CoolMOS™ C7 | CoolMOS™ P7 | CoolMOS™ CFD7 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

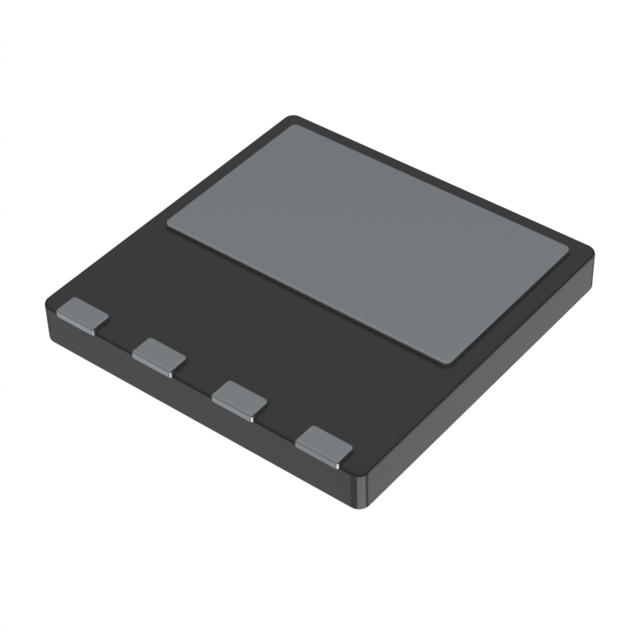

IPL60R060CFD7AUMA1
Infineon Technologies
IPL60R065C7AUMA1
Infineon Technologies
IPL60R065P7AUMA1
Infineon Technologies
IPL60R075CFD7AUMA1
Infineon Technologies
IPL60R085P7AUMA1
Infineon Technologies
IPL60R095CFD7AUMA1
Infineon Technologies
IPL60R104C7AUMA1
Infineon Technologies
IPL60R105P7AUMA1
Infineon Technologies
IPL60R115CFD7AUMA1
Infineon Technologies
IPL60R125P7AUMA1
Infineon Technologies
IPL60R140CFD7AUMA1
Infineon Technologies
IPL60R160CFD7AUMA1
Infineon Technologies

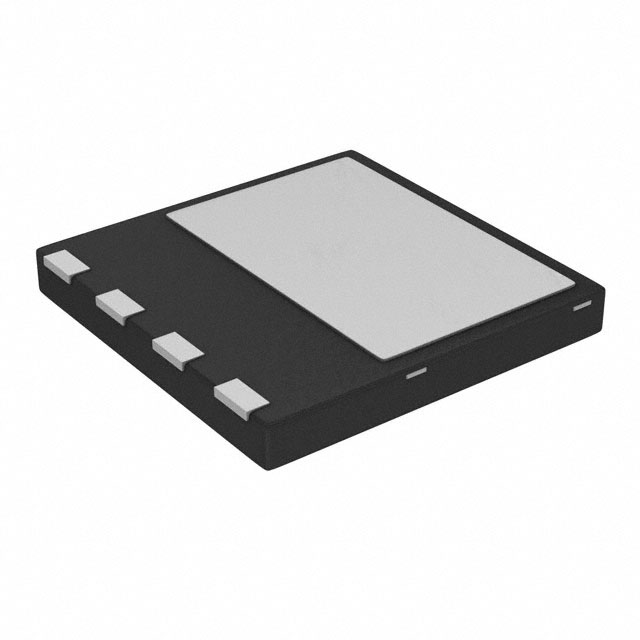

IPL60R180P6AUMA1
