IPP60R190E6XKSA1

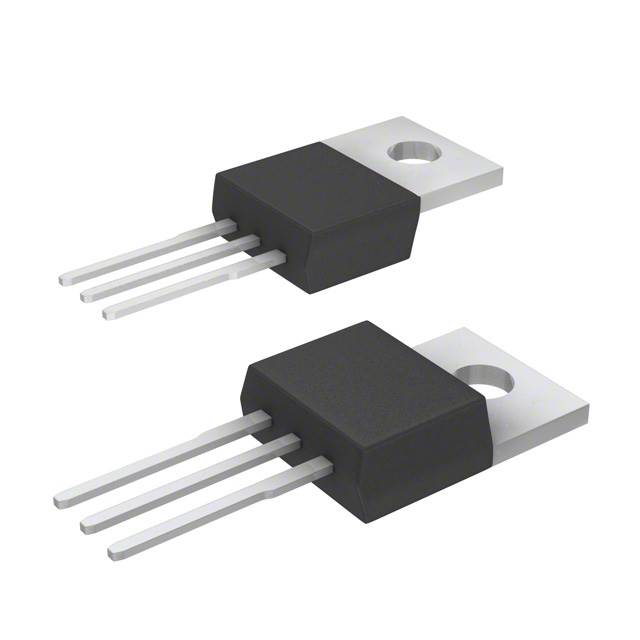

lmages are for reference only.IPP60R190E6XKSA1
MOSFET N-CH 600V 20.2A TO220-3
DatasheetTO-220-3
88,289 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 20.2A (Tc) 151W (Tc) Through Hole PG-TO220-3
IPP60R190E6XKSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | CoolMOS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 20.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 9.5A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 630µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 151W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | IPP60R190 |
| Gate Charge (Qg) (Max) @ Vgs | 63 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IPP60R016CM8XKSA1 | IPP60R022S7XKSA1 | IPP60R037CM8XKSA1 | IPP60R040C7XKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IPP60R016CM8XKSA1 | MOSFET N-CH 600V 23A TO220-3 | IPP60R037CM8XKSA1 | MOSFET N-CH 600V 50A TO220-3 |
| Series | CoolMOS™ | CoolMOS™S7 | CoolMOS™ | CoolMOS™ C7 |
| Packaging | Tube | Tube | Tube | Tube |
