IPP65R150CFDAAKSA1

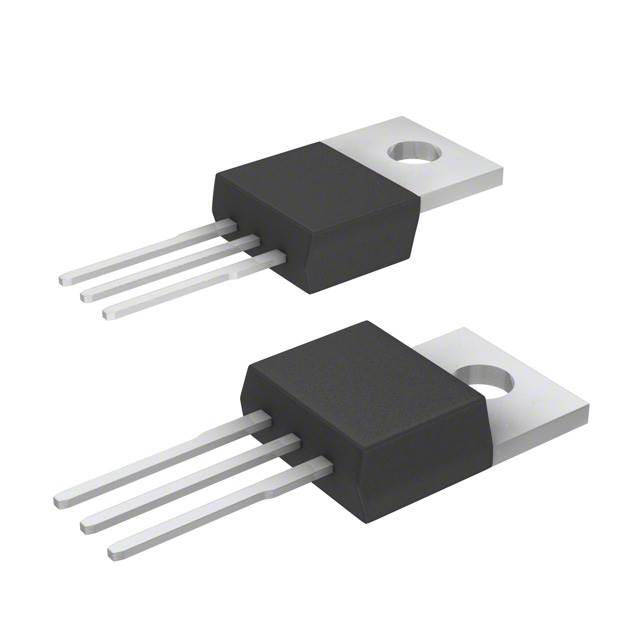

lmages are for reference only.IPP65R150CFDAAKSA1
MOSFET N-CH 650V 22.4A TO220-3
DatasheetTO-220-3
32,933 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 22.4A (Tc) 195.3W (Tc) Through Hole PG-TO220-3
IPP65R150CFDAAKSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | CoolMOS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 22.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 9.3A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 900µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2340 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 195.3W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | IPP65R150 |
| Gate Charge (Qg) (Max) @ Vgs | 86 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | IPP65R150CFDXKSA1 | IPP65R150CFDXKSA2 | IPP65R155CFD7XKSA1 | IPP011N03LF2SAKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 650V 22.4A TO220-3 | MOSFET N-CH 650V 22.4A TO220-3 | HIGH POWER_NEW | TRENCH <= 40V |
| Series | CoolMOS™ | CoolMOS™ CFD2 | CoolMOS™ CFD7 | StrongIRFET™2 |
| Packaging | Tube | Tube | Tube | Tube |
