Product CatalogPart Number
IQG48025A120V-009-R
Manufacturer
TDK-LambdaDescription
DC DC CONVERTER 12V 300W
Datasheet
DatasheetPackage
Quarter Brick
In Stock
14,217 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IQG48025A120V-009-R
IQG48025A120V-009-R
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 25A 36V - 75V Input
Quick Inquiry
IQG48025A120V-009-R
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | iQG (300W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 300 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP |
| Operating Temperature | -40°C ~ 124°C (With Derating) |
| Efficiency | 94.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | IQG48025 |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IQG48025A120V-001-R | IQG48025A120V-101-R | IQG48025A120V-109-R | IQG48033A120V-009-R |
| Manufacturer | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V 300W | DC DC CONVERTER 12V 300W | DC DC CONVERTER 12V 300W | DC DC CONVERTER 12V |
| Series | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| Packaging | Tray | Bulk | Bulk | Tray |
Customers Also Interested in
Recommended Products

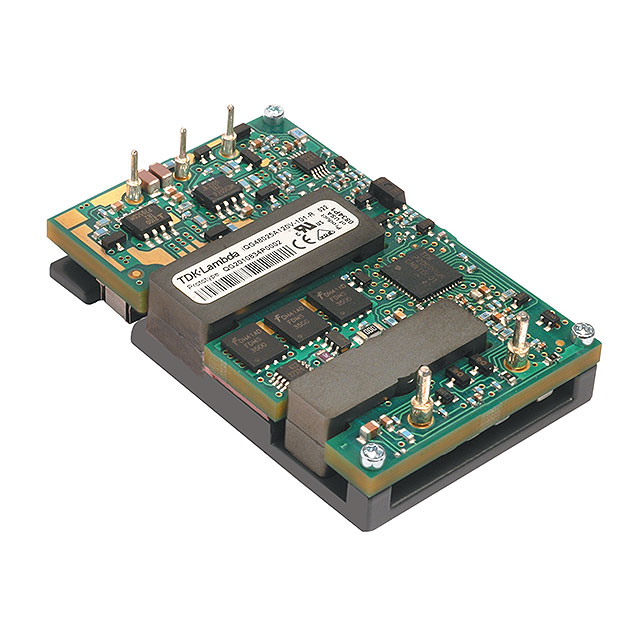

IQG48025A120V-001-R
TDK-Lambda

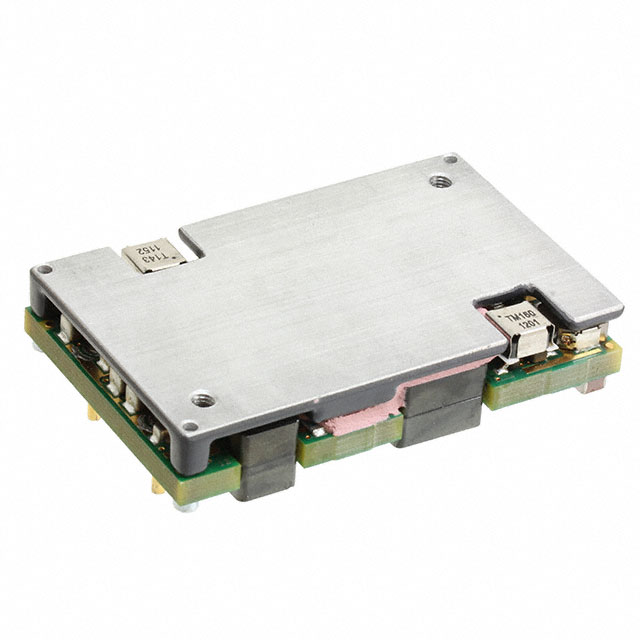

IQG48025A120V-101-R
