IR2112-1

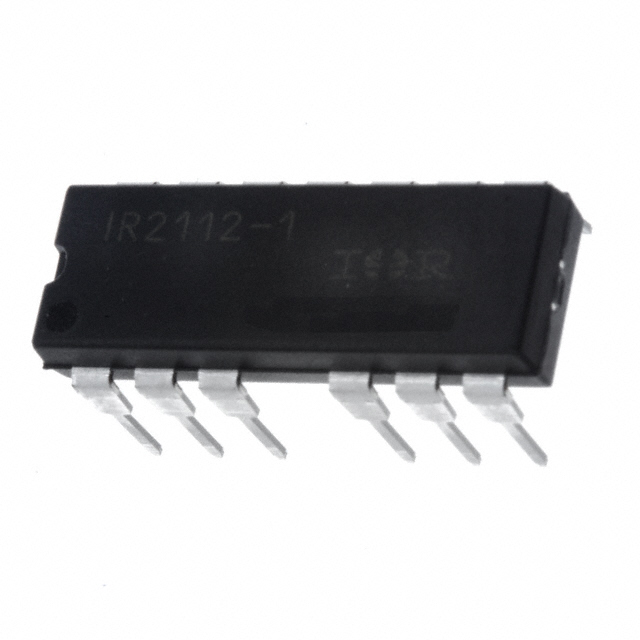

lmages are for reference only.IR2112-1
IC GATE DRVR HI/LOW SIDE 14DIP
Datasheet14-DIP (0.300", 7.62mm), 13 Leads
68,215 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High-Side or Low-Side Gate Driver IC Non-Inverting 14-PDIP
IR2112-1
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 80ns, 40ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm), 13 Leads |
| Supplier Device Package | 14-PDIP |
| Base Product Number | IR2112 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IR2112-1PBF | IR2112-2 | IR2112-2PBF | IR2110 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||

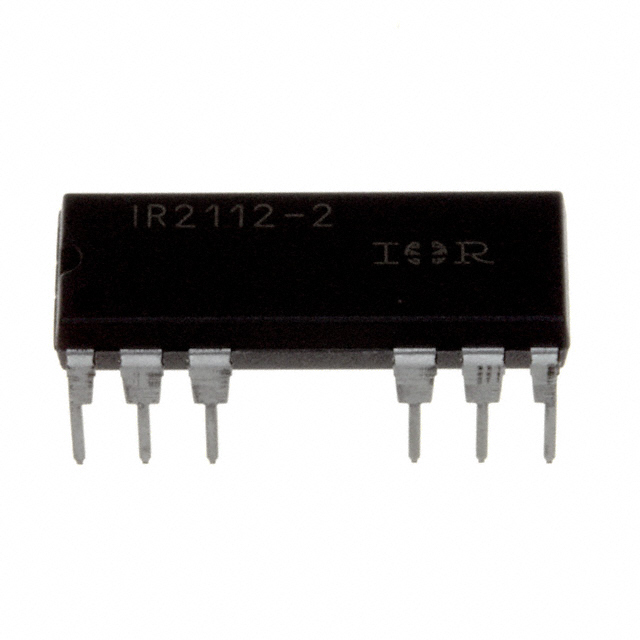

| Description | IC GATE DRVR HI/LOW SIDE 14DIP | IC GATE DRVR HI/LOW SIDE 16DIP | IC GATE DRVR HI/LOW SIDE 16DIP | IC GATE DRVR HALF-BRIDGE 14DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
