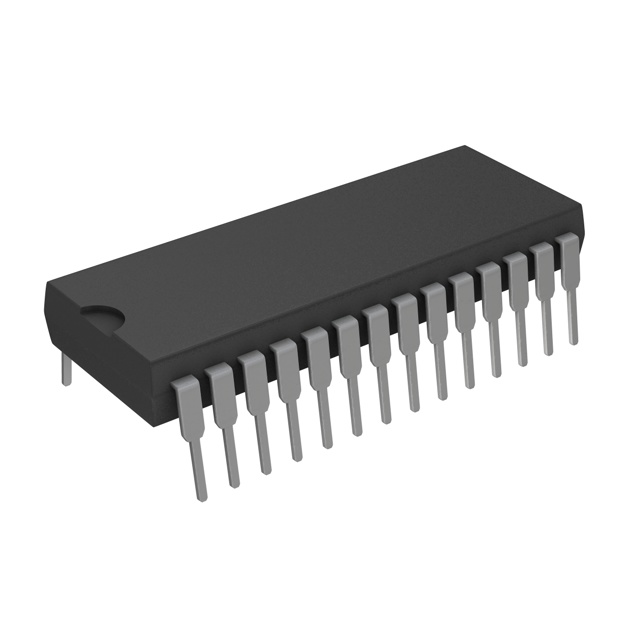

Half-Bridge Gate Driver IC Inverting 28-DIP
IR2133PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 90ns, 40ns |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-DIP |
| Base Product Number | IR2133 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | IR2133PBF | IR2133 | IR2133J | IR2133JPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC GATE DRVR HALF-BRIDGE 28DIP | IC GATE DRVR HALF-BRIDGE 28DIP | IC GATE DRVR HALF-BRIDGE 44PLCC | IC GATE DRVR HALF-BRIDGE 44PLCC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
