IR21363SPBF

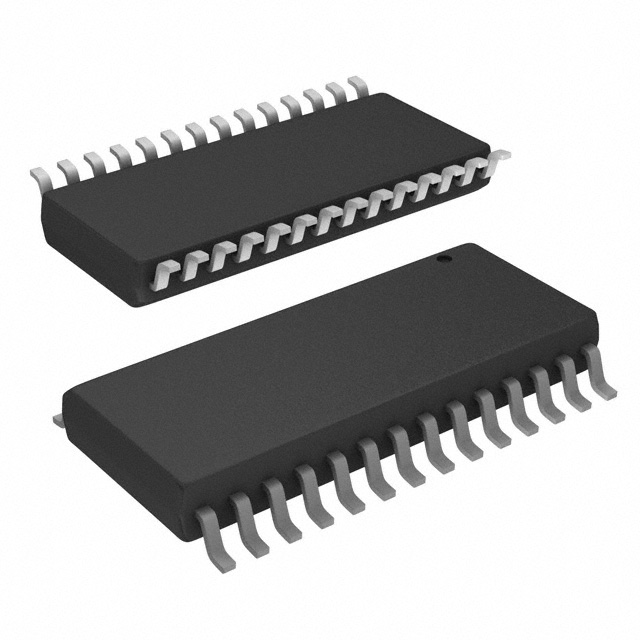

lmages are for reference only.IR21363SPBF
3-PHASE BRIDGE DRIVER
Datasheet28-SOIC (0.295", 7.50mm Width)
58,926 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Inverting 28-SOIC
IR21363SPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 12V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 125ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | IR21363 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | IR21363SPBF | IR21363STRPBF | IR21363STRPBF | IR2130 |
| Manufacturer | Infineon Technologies | International Rectifier | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | IC GATE DRVR HALF-BRIDGE 28SOIC | IR21363S - GATE DRIVER | IC GATE DRVR HALF-BRIDGE 28SOIC | IC GATE DRVR HALF-BRIDGE 28DIP |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
