IRF6665TR1

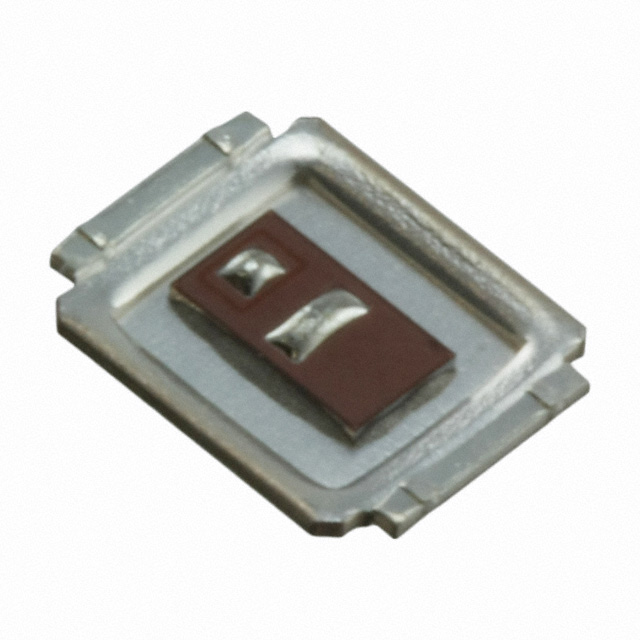

lmages are for reference only.IRF6665TR1
MOSFET N-CH 100V 4.2A DIRECTFET
DatasheetDirectFET™ Isometric SH
40,213 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 4.2A (Ta), 19A (Tc) 2.2W (Ta), 42W (Tc) Surface Mount DIRECTFET™ SH
IRF6665TR1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 4.2A (Ta), 19A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 62mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 530 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ SH |
| Package / Case | DirectFET™ Isometric SH |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | IRF6665 | IRF6665TR1PBF | IRF6665TRPBF | IRF60B217 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | International Rectifier |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | MOSFET N-CH 100V 4.2A DIRECTFET | MOSFET N-CH 100V 4.2A DIRECTFET | MOSFET N-CH 100V 4.2A DIRECTFET | TRENCH 40<-<100V |
| Series | - | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
