IRF6726MTRPBFTR

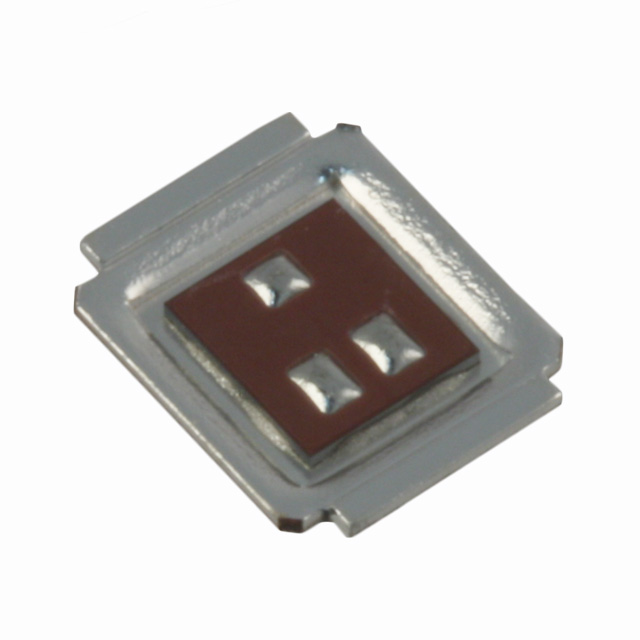

lmages are for reference only.IRF6726MTRPBFTR
IRF6726 - 12V-300V N-CHANNEL POW
DatasheetDirectFET™ Isometric MT
16,907 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 32A (Ta), 180A (Tc) 2.8W (Ta), 89W (Tc) Surface Mount DIRECTFET™ MT
IRF6726MTRPBFTR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Ta), 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.7mOhm @ 32A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 150µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6140 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ MT |
| Package / Case | DirectFET™ Isometric MT |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 77 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | IRF6726MTR1PBF | IRF6726MTRPBF | IRF6726MTRPBF | IRF6706S2TR1PBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | International Rectifier | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFET N-CH 30V 32A DIRECTFET | MOSFET N-CH 30V 32A DIRECTFET | IRF6726 - 12V-300V N-CHANNEL POW | MOSFET N-CH 25V 17A DIRECTFET |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
