IRF6811STRPBF

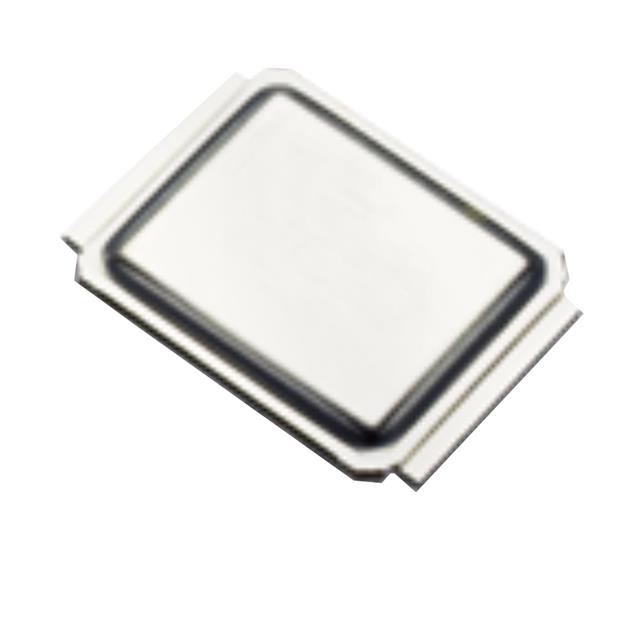

lmages are for reference only.IRF6811STRPBF
MOSFET N-CH 25V 19A/74A DIRECTFT
DatasheetDirectFET™ Isometric SQ
68,147 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 25 V 19A (Ta), 74A (Tc) 2.1W (Ta), 32W (Tc) Surface Mount DirectFET™ Isometric SQ
IRF6811STRPBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | DirectFET® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta), 74A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 3.7mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 35µA |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 1590 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 32W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric SQ |
| Package / Case | DirectFET™ Isometric SQ |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | IRF6811STR1PBF | IRF6811STRPBF | IRF6811STRPBF-INF | IRF100B201 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N CH 25V 19A DIRECTFET | MOSFET N CH 25V 19A DIRECTFET | DIRECTFET PLUS POWER MOSFET | MOSFET N-CH 100V 192A TO220AB |
| Series | HEXFET® | HEXFET® | DirectFET® | HEXFET®, StrongIRFET™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tube |
