IRF9383MTRPBF

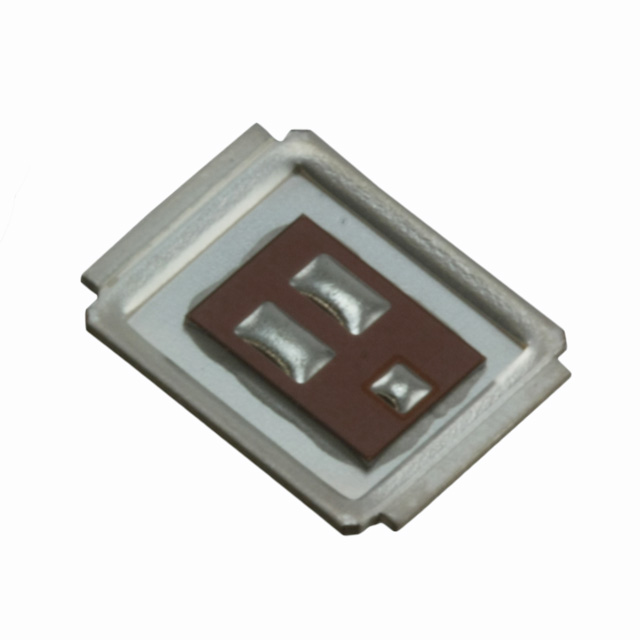

lmages are for reference only.IRF9383MTRPBF
IRF9383 - 20V-250V P-CHANNEL POW
DatasheetDirectFET™ Isometric MX
38,018 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 30 V 22A (Ta), 160A (Tc) 2.1W (Ta), 113W (Tc) Surface Mount DIRECTFET™ MX
IRF9383MTRPBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.9mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 150µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7305 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 113W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ MX |
| Package / Case | DirectFET™ Isometric MX |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | IRF9383MTR1PBF | IRF9383MTRPBF | IRF100B201 | IRF100B201 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | UMW |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET P-CH 30V 22A DIRECTFET | MOSFET P-CH 30V 22A DIRECTFET | MOSFET N-CH 100V 192A TO220AB | MOSFET N-CH 100V 192A TO220AB |
| Series | HEXFET® | HEXFET® | HEXFET®, StrongIRFET™ | * |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
