IRF9910TR

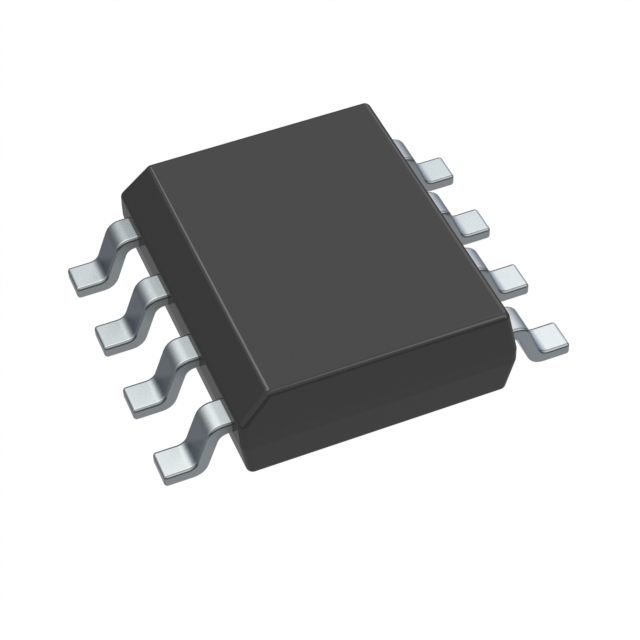

lmages are for reference only.IRF9910TR
MOSFET 2N-CH 20V 10A/12A 8SO
Datasheet8-SOIC (0.154", 3.90mm Width)
84,297 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 10A, 12A 2W Surface Mount 8-SO
IRF9910TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 10A, 12A |
| Rds On (Max) @ Id, Vgs | 13.4mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.55V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 900pF @ 10V |
| Power - Max | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | IRF99 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IRF9910TRPBF | IRF9910TRPBF-1 | IRF9910 | IRF9910PBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 20V 10A/12A 8SO | MOSFET 2N-CH 20V 10A 8SOIC | MOSFET 2N-CH 20V 10A/12A 8SO | MOSFET 2N-CH 20V 10A/12A 8SO |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Tube |
