Product CatalogPart Number
IRFB4110
Manufacturer
UMWDescription
MOSFET N-CH 100V 120A TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
50,259 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRFB4110
IRFB4110
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 100 V 120A (Tc) 370W (Tc) Through Hole TO-220AB
Quick Inquiry
IRFB4110
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | UMW |
| Series | * |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 75A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 370W (Tc) |
| Operating Temperature | -55°C ~ 155°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

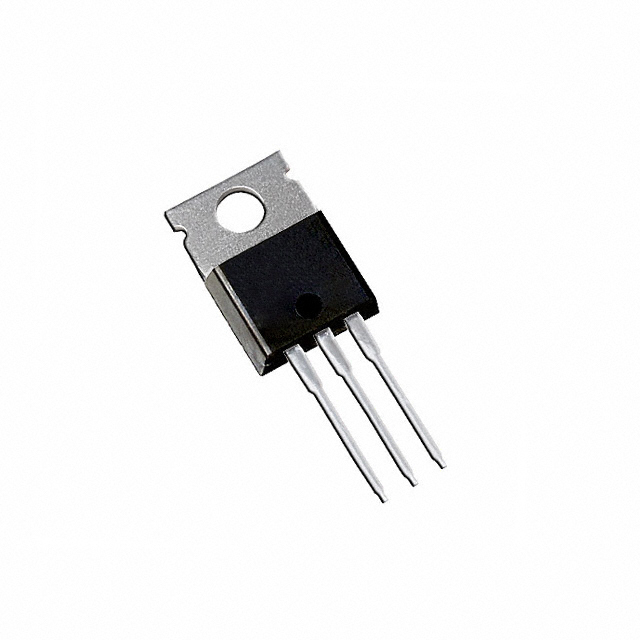

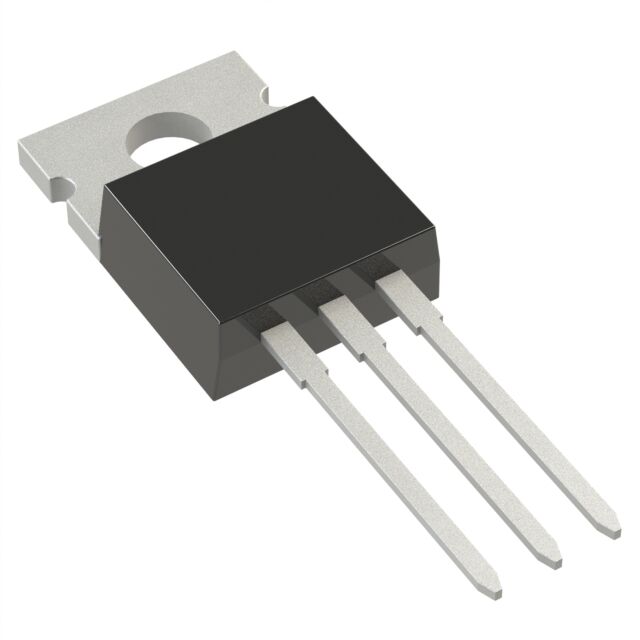

| Part Number | IRFB4110GPBF | IRFB4110PBF | IRFB4110PBFXKMA1 | IRFB4115GPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 100V 120A TO220AB | MOSFET N-CH 100V 120A TO220AB | TRENCH >=100V | MOSFET N-CH 150V 104A TO220AB |
| Series | HEXFET® | HEXFET® | - | HEXFET® |
| Packaging | Tube | Tube | Tube | Tube |
