IRFH5104TRPBF

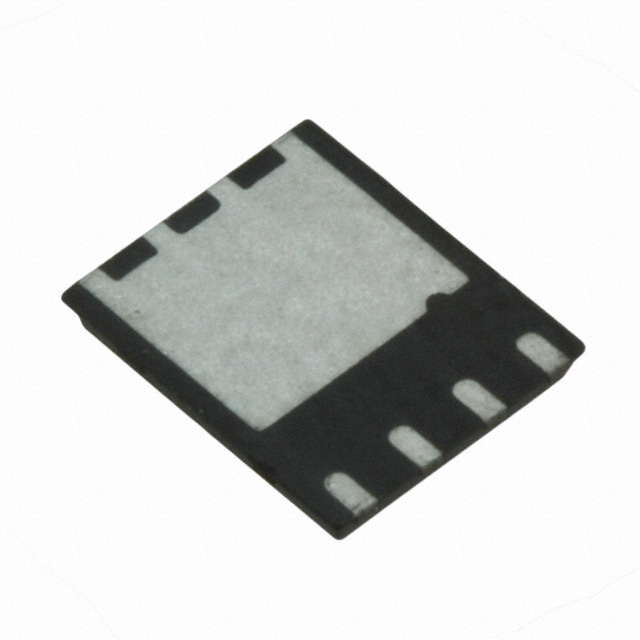

lmages are for reference only.IRFH5104TRPBF
MOSFET N-CH 40V 24A/100A PQFN
Datasheet8-VQFN Exposed Pad
56,040 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 24A (Ta), 100A (Tc) 3.6W (Ta), 114W (Tc) Surface Mount PQFN (5x6)
IRFH5104TRPBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 100µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3120 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 114W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) |
| Package / Case | 8-VQFN Exposed Pad |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | IRFH5104TR2PBF | IRFH5106TR2PBF | IRFH5106TRPBF | IRF100B201 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFET N-CH 40V 24A/100A PQFN | MOSFET N-CH 60V 100A 5X6 PQFN | MOSFET N-CH 60V 21A/100A 8PQFN | MOSFET N-CH 100V 192A TO220AB |
| Series | HEXFET® | - | HEXFET® | HEXFET®, StrongIRFET™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR) | Tube |
