Product CatalogPart Number
IRFP250
Manufacturer
STMicroelectronicsDescription
MOSFET N-CH 200V 33A TO247-3
Datasheet
DatasheetPackage
TO-247-3
In Stock
96,651 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

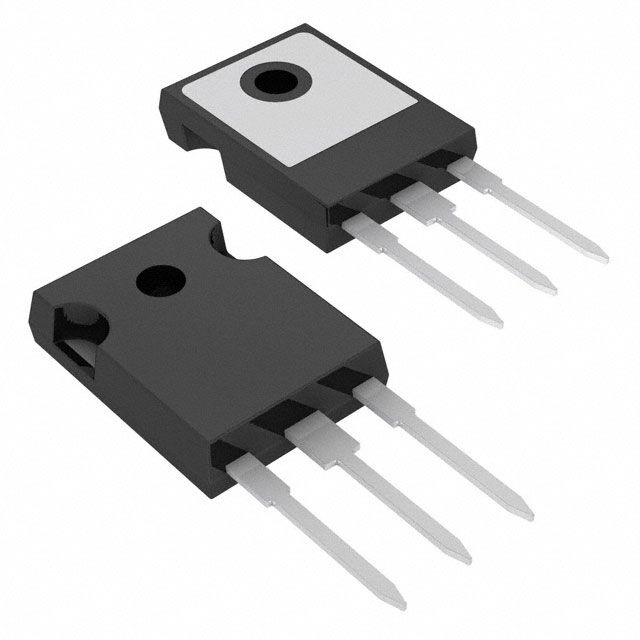

IRFP250
IRFP250
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 200 V 33A (Tc) 180W (Tc) Through Hole TO-247-3
Quick Inquiry
IRFP250
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | STMicroelectronics |
| Series | PowerMESH™ II |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 33A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2850 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 180W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
| Base Product Number | IRFP |
| Gate Charge (Qg) (Max) @ Vgs | 158 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | IRFP250 | IRFP250MPBF | IRFP250NPBF | IRFP250PBF |
| Manufacturer | IXYS | Infineon Technologies | Infineon Technologies | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 200V 30A TO247AD | MOSFET N-CH 200V 30A TO247AC | MOSFET N-CH 200V 30A TO247AC | MOSFET N-CH 200V 30A TO247-3 |
| Series | - | HEXFET® | HEXFET® | - |
| Packaging | Tube | Tube | Tube | Tube |
