IRFS254BFP001

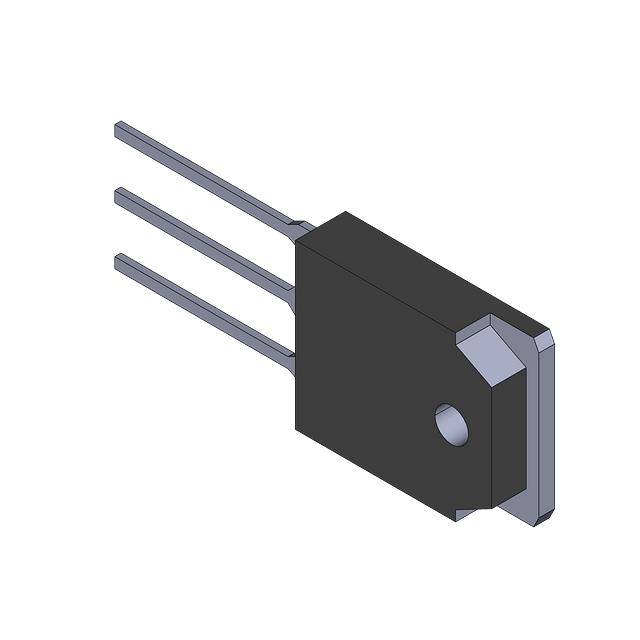

lmages are for reference only.IRFS254BFP001
N-CHANNEL POWER MOSFET
DatasheetTO-220-3 Full Pack
39,245 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 250 V 16A (Tc) 90W (Tc) Through Hole TO-220F
IRFS254BFP001
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 140mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3400 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 90W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 123 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | IRF100B201 | IRF100B201 | IRF100B202 | IRF100P218AKMA1 |
| Manufacturer | Infineon Technologies | UMW | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 100V 192A TO220AB | MOSFET N-CH 100V 192A TO220AB | MOSFET N-CH 100V 97A TO220AB | MOSFET N-CH 100V 209A TO247AC |
| Series | HEXFET®, StrongIRFET™ | * | HEXFET®, StrongIRFET™ | StrongIRFET™ |
| Packaging | Tube | Tube | Tube | Tube |
