IRG7PH30K10DPBF
Manufacturer
Infineon TechnologiesDescription

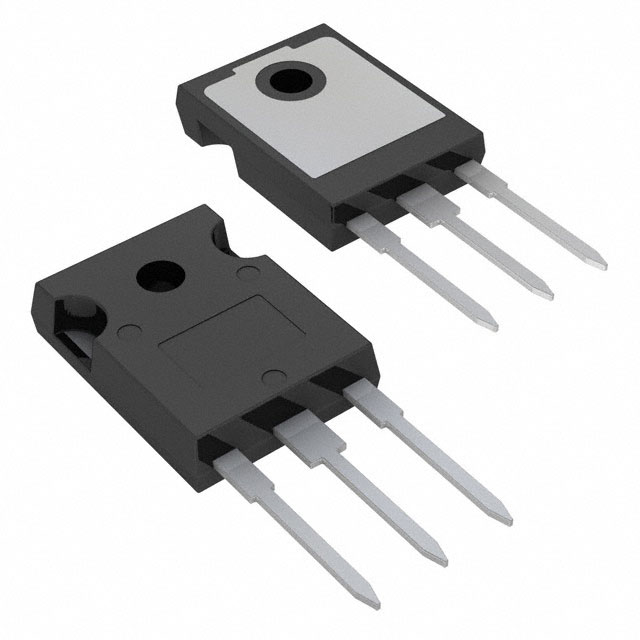

IGBT 1200V 30A 180W TO247AC
Datasheet
DatasheetPackage
TO-247-3
In Stock
42,589 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRG7PH30K10DPBF
IRG7PH30K10DPBF
lmages are for reference only.Payment Methods
Delivery Services
IGBT Trench 1200 V 30 A 180 W Through Hole TO-247AC
Quick Inquiry
IRG7PH30K10DPBF
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 27 A |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 9A |
| Power - Max | 180 W |
| Switching Energy | 530µJ (on), 380µJ (off) |
| Input Type | Standard |
| Gate Charge | 45 nC |
| Td (on/off) @ 25°C | 14ns/110ns |
| Test Condition | 600V, 9A, 22Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
| Reverse Recovery Time (trr) | 140 ns |
| Base Product Number | IRG7PH |
