IRGP4690DPBF

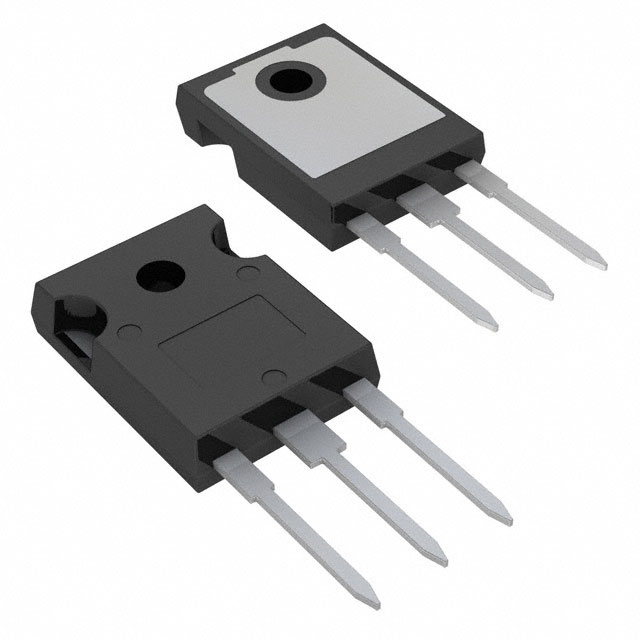

lmages are for reference only.IRGP4690DPBF
IRGP4690 - DISCRETE IGBT WITH AN
DatasheetTO-247-3
95,237 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 140 A 454 W Through Hole TO-247AC
IRGP4690DPBF
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 140 A |
| Current - Collector Pulsed (Icm) | 225 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A |
| Power - Max | 454 W |
| Switching Energy | 2.47mJ (on), 2.16mJ (off) |
| Input Type | Standard |
| Gate Charge | 150 nC |
| Td (on/off) @ 25°C | 50ns/200ns |
| Test Condition | 400V, 75A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
| Reverse Recovery Time (trr) | 155 ns |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | IRGP4690D-EPBF | IRGP4690D-EPBF | IRGP4690DPBF | IRGP4620D-EPBF |
| Manufacturer | International Rectifier | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||
| Description | IGBT WITH RECOVERY DIODE | IGBT 600V 140A 454W TO247AD | IGBT 600V 140A TO247AC | IGBT 600V 32A 140W TO247AD |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
