IRH-54/4.7-W80NB-C

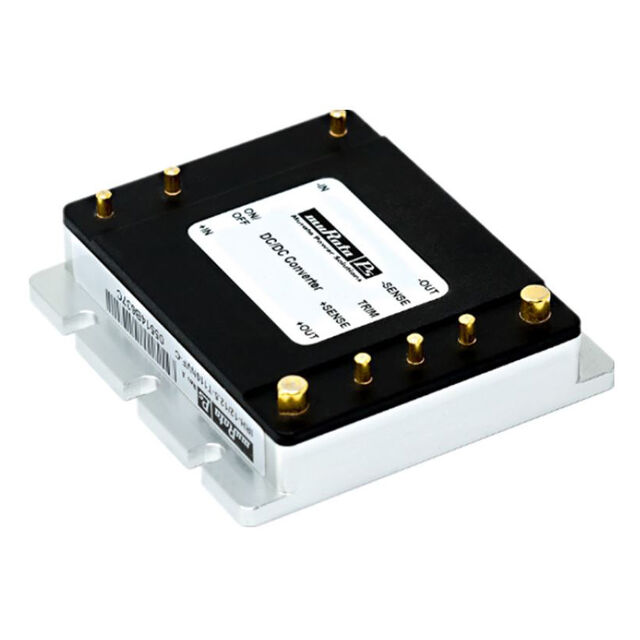

lmages are for reference only.IRH-54/4.7-W80NB-C
16V - 160V DC I/P, 54V 250W O/P,
DatasheetHalf Brick
79,204 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 54V 4.7A 16V - 160V Input
IRH-54/4.7-W80NB-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | IRH-W80 (250W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 16V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 54V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.7A |
| Power (Watts) | 254 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 90.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.49" L x 2.39" W x 0.55" H (63.2mm x 60.7mm x 14.0mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
| Base Product Number | - |
| Voltage - Isolation | 4.242 kV |
| Product Attribute |  |
 |
|
 |
| Part Number | IRH-54/4.7-W80PB-C | IRH-12/12.5-T110N-C | IRH-12/12.5-T110N-C | IRH-12/12.5-T110NF-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 16V - 160V DC I/P, 54V 250W O/P, | DC DC CONVERTER 12V 150W | DC DC CONVERTER 12V 150W | DC DC CONVERTER 12V 150W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tray | Tray | Tray |
