IRLI3803PBF

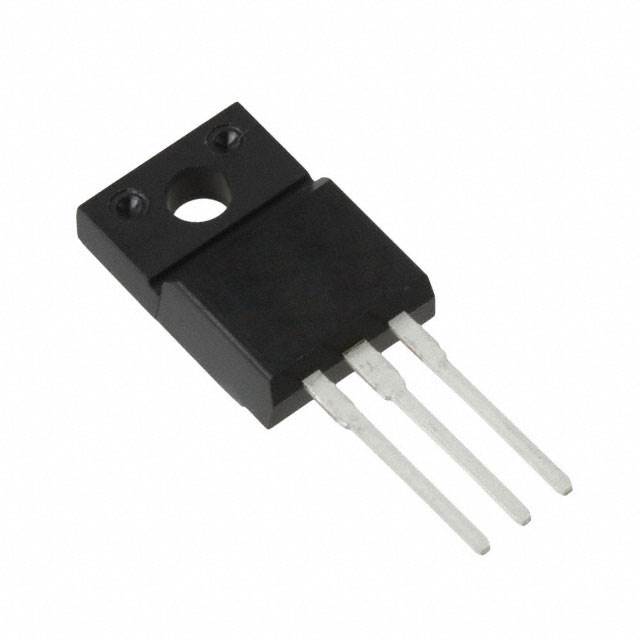

lmages are for reference only.IRLI3803PBF
MOSFET N-CH 30V 76A TO220AB FP
DatasheetTO-220-3 Full Pack
41,663 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 76A (Tc) 63W (Tc) Through Hole TO-220AB Full-Pak
IRLI3803PBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tube |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 76A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 5000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 63W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB Full-Pak |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 140 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | IRLI3705NPBF | IRLI3803 | IQFH36N04NM6ATMA1 | IXTA220N075T7 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | IXYS |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 55V 52A TO220AB FP | MOSFET N-CH 30V 76A TO220AB FP | IQFH36N04NM6ATMA1 | MOSFET N-CH 75V 220A TO263-7 |
| Series | HEXFET® | HEXFET® | OptiMOS™ 6 | TrenchMV™ |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
