IRP4-810C-45D
lmages are for reference only.IRP4-810C-45D
3.9x 3.9x3.0mm High Power IR LED
Datasheet1616 (4040 Metric)
70,424 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 810nm (800nm ~ 820nm) 1.7V 1A 770mW/sr @ 1A (Typ) 45° 1616 (4040 Metric)
IRP4-810C-45D
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 770mW/sr @ 1A (Typ) |
| Wavelength | 810nm (800nm ~ 820nm) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | 45° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 1616 (4040 Metric) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

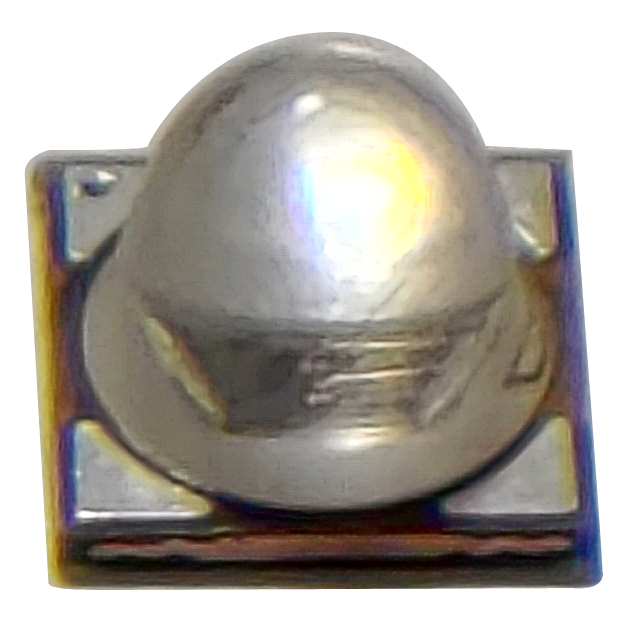

| Part Number | IRP4-1050C-45D | IRP4-850C-45D | IRP4-855C-140D | HR5P-N3FA-00000 |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | Broadcom Limited |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 3.9x 3.9x3.0mm High Power IR LED | 3.9x 3.9x2.9mm High Power IR LED | POWER IR LED | IR LAMP,5MM, 880NM,50DEG |
| Series | * | - | - | * |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
